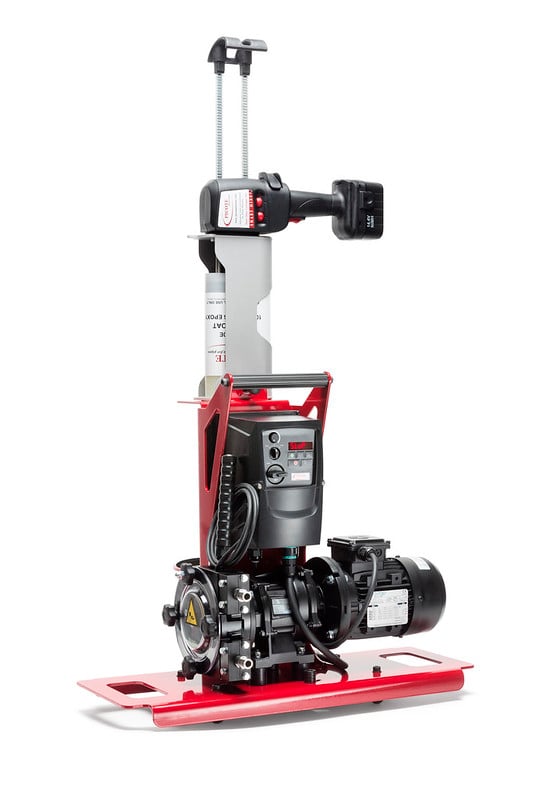

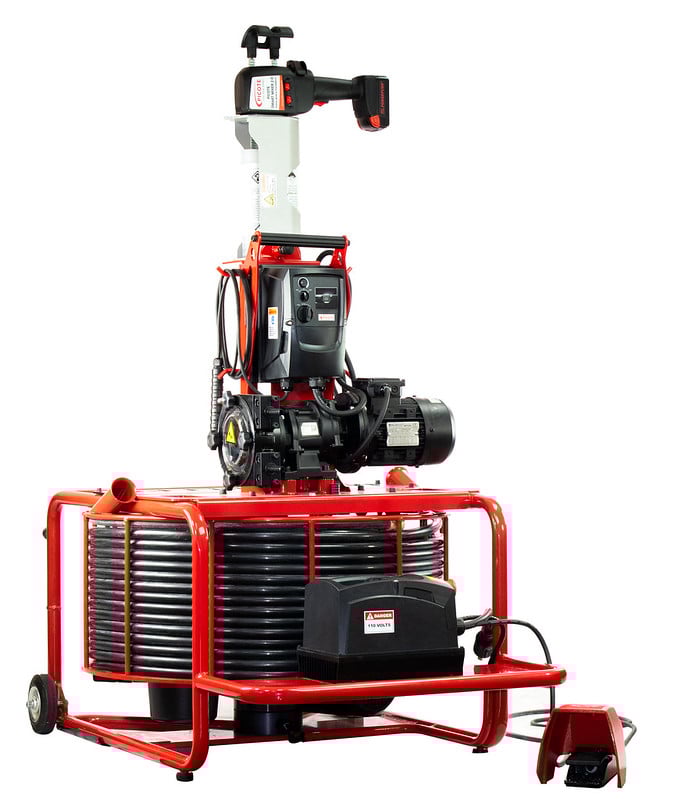

Maxi Coating Pump

Maxi Coating Pump

The Maxi Coating Pump can be combined with several Miller models to meet your Picote Brush Coating™ project needs, based on pipe length and diameter.

Allows coating and degreasing in DN70-300 (3-12”) diameter pipes up to 39m (128’) in length.

Specification Images & videos Downloads Where to use Accessories
Uses and benefits
  • Controls the flow of Picote Brush Coating DC1000E, Dual Color Epoxy Resin.
  • Adjustable pump speed & direction.
  • Hand-held locking operator control trigger. When the button is pushed the pump is engaged and will operate until pressed again.

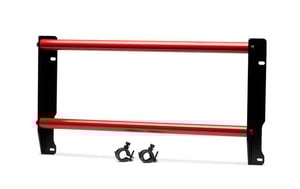

  • Combine and secure the Mini Coating Pump to the Mini Miller, Mini Cleaner, or Super Battery Mini Miller/Mini Cleaner frames for a portable compact system.
  • Can also be used to remove fats, oils, and grease from pipes by pumping degreaser down the line to assist with cleaning.

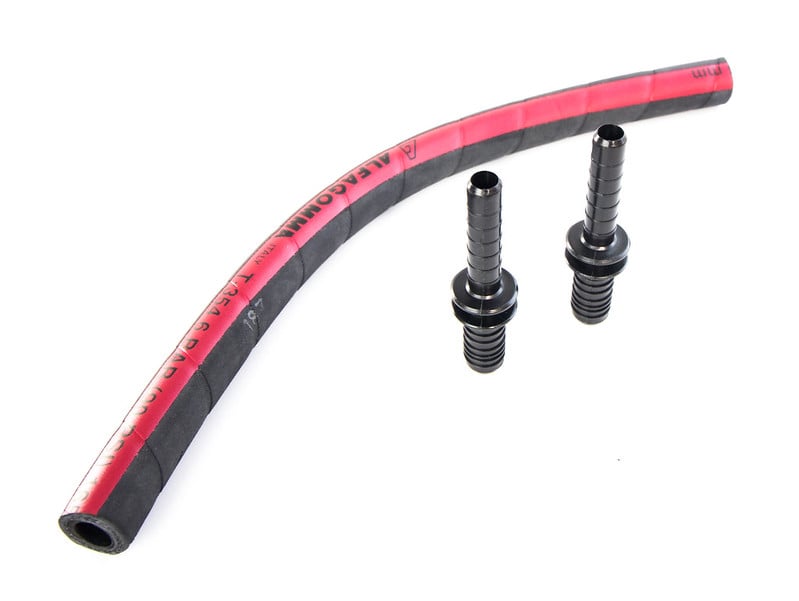

  • Includes Resin Cup Package, 3x Hose Connectors, Hose Clamps and 2x Brush Stoppers.
  • *NSF61 Certified for DN100 (4”) and larger pipes (final coat in white).
Technical spec
Pipe Diameters DN70-300 (3-12")
Max Range 39m (128')
Power UK/US: 110V, 15 Amp
  EU: 220V, 16 Amp
Output (kw) 0.25
Weight 23kg (51 lbs)
Size 66 x 43 x 55 cm
  26 x 16.9 x 21.7"
How to use

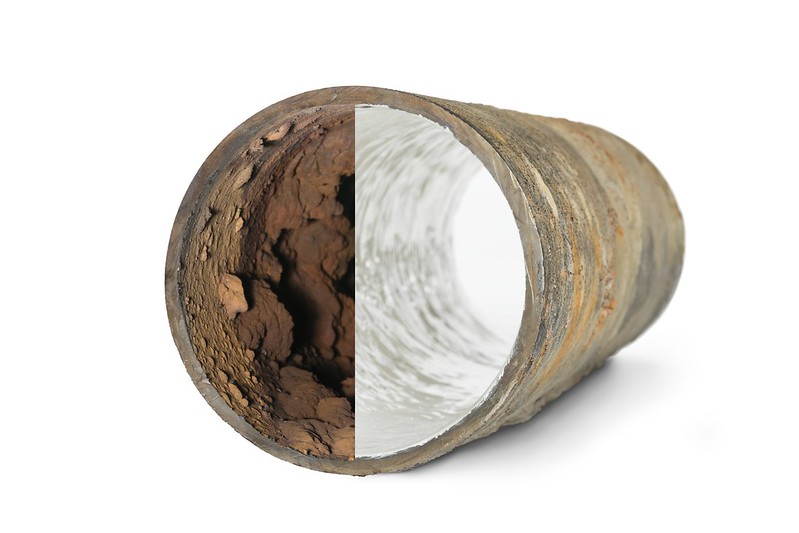

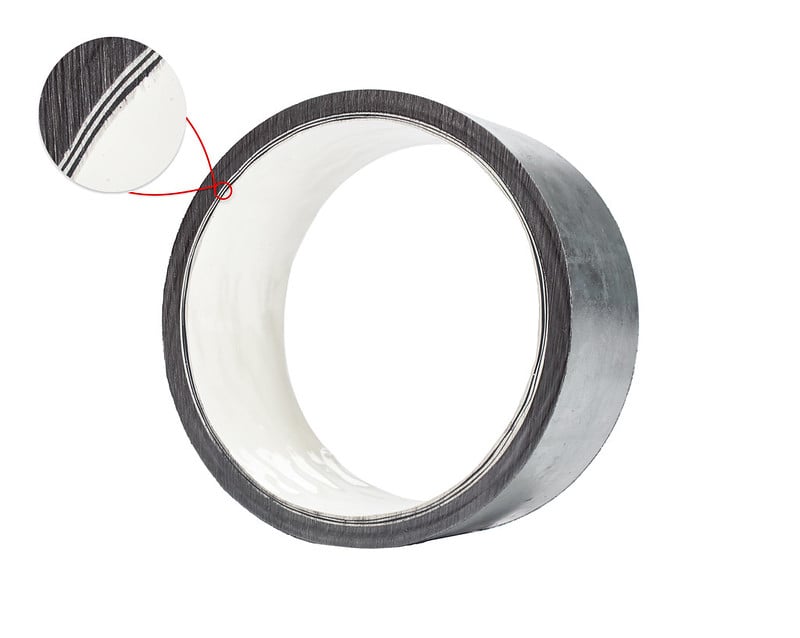

Renovate old or deteriorated drains and sewers from DN70-300 (3-12") diameter with the Maxi Pump Picote Brush Coating™ System. The coating applied provides a corrosion resistant, wear-resistant and non-corrosive lining. Several coats can be applied within the same pipe. Renovate entire piping systems for example apartments or blocks of flats with minimal disruption, avoiding costly excavation.

  • Apartments & High-Rise
  • Industrial & Nuclear
  • Hydro-Electric
  • Residential & Municipal
  • Pools & Dams
  • Hybrid - CIPP mains/stacks and coat laterals
  • Entire Lines - Coat entire piping systems from rooftop to city sewer
  • Protection - Coating barrier to prevent rust & corrosion
  • Reinforce - Strengthen CIPP lined connections
  • Gapping - Fill gaps between CIPP liners

Downloads

US Catalog
Download file
Fact sheet
Download file
Quick Guides
Download file
Metric Catalogue
Download file
German Catalogue
Download file
Mini Coating Pump
Combine with Mini Miller or Mini Cleaner.
Original Standard Chain
Original Standard Chains available for⅓", ⅜" & ½" Shaft
Cyclone Standard Chain
Cyclone Standard Chains available for⅓", ⅜" & ½" Shaft
Original Premium Chain
Original Premium Chains available for⅓", ½" & ¾" Shaft. For Midi Cleaner with ⅜" Shaft, use a Shaft Connector
Tiger Original Chain
Tiger Original Chains available for⅓", ⅜" & ½" Shaft
Tiger Drill Chain
Tiger Drill Chains available for ⅓", ⅜" & ½" Shaft
Original PVC Chain
Original PVC Chains available for⅓", ⅜" & ½" Shaft
3D Premium Chain
3D Premium Chains available for⅓" & ½" Shaft. For Midi Cleaner with ⅜" Shaft use a Shaft Connector
3D PVC Chain
3D PVC Chains available for⅓" & ½" Shaft. For Midi Cleaner with ⅜" Shaft use a Shaft Connector
Cyclone Premium Chain
Cyclone Premium Chains available for⅓" & ½" Shaft. For Midi Cleaner with ⅜" Shaft use a Shaft Connector.
Cyclone PVC Chain
Cyclone PVC Chains available for⅓", ⅜" & ½" Shaft
Tiger Cyclone Chain
Tiger Cyclone Chains available for⅓", ⅜" & ½" Shaft
Special Drill Head Cutter
Special Drill Heads for reinstatements and cleaning. Available for ⅓" & ½" (8 & 12mm) shafts.
Shaft Connector
Shaft Connectors available for ⅓", ⅜" & ½" shafts (8mm, 12mm & 18mm shafts). Not suitable for Mini Cleaner.
Tiger Bore
Tiger Bores for reinstatements and cleaning. Available for ⅓" & ½" (8 & 12mm) shafts.
Flexible Shaft Extension
Extension shafts available for all Miller models except the Mini Cleaner.
Replacement Flexible Shaft
Replacement Flexible Shafts available for all Miller models.
Leader
Leaders used to connect tools quickly. Available in ⅓", ⅜", ½" & ¾" (8, 10, 12 & 18mm) shaft sizes
Pipe Cutter
Pipe Cutter/Pipe Cutter Ultra Flex. Use to cut overshot liners in bent or straight sections of pipe.
Wire Cleaning Brushes
Metal cleaning brush for removing fine dust or light mineral deposits in PVC & fragile pipes. Also used for Picote Brush Coating® preparation.
Shaft Lubricant
Shaft Lubricant Oil, for rotating Miller shafts
