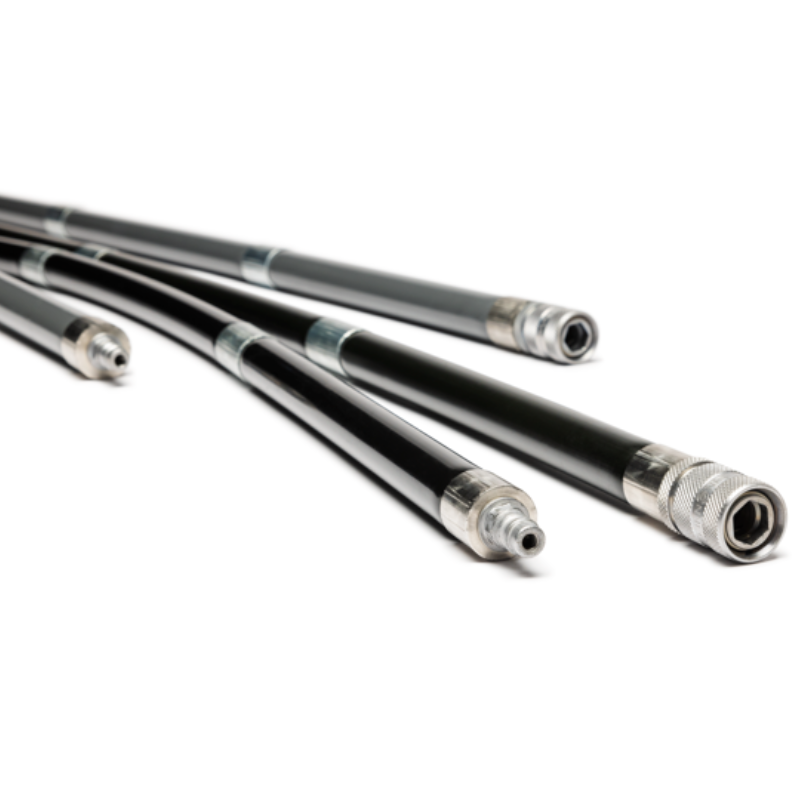

Picote Push Rods

Picote Push Rods are strong enough to push and rotate while being flexible enough to go through multiple pipe bends! This is thanks, in part, to the unique custom-made connectors which are small enough to maintain flexibility while locking in securely enough to enable both pushing, pulling and twisting movements!

Multi-purpose, for use with:

  • Picote Connection Collars
  • Picote Pro Packers
  • Picote Grabber Head for Push Rods
  • NEW Picote Mini Multi-Cutter!

2 versions are available: a smaller diameter version (22mm, black) with greater flexibility for more bends and smaller diameter pipes; and a larger diameter version (24mm, grey) with more rigidity for longer runs and larger pipe diameters.

Picote Push Rods can also carry steam to speed up the curing process!

Specification Images & videos Downloads Where to use Accessories
Uses and benefits
  • Muti-Use: can be used with our Pro Packers, Connection Collar System, Picote Grabber Head for Push Rods, and even the NEW Picote Mini Multi-Cutter!
  • Custom Push Rods: Strong enough for pushing, pulling and rotation. Flexible enough to navigate multiple bends.
  • Use the 0.75m (2.5') Push Rod as the last rod (closest to the pipe access and turning handle) when only a short additional length is required. This makes turning and control easier.
  • Turning Handle makes pushing, pulling, rotation and air control easy!
Technical spec
Category Model/Specification
Push Rod lengths

1.5m (5') & 0.75m (2.5') available



Push Rod Diameters

22mm (0.86") (black casing)

24mm (0.94") (grey casing)

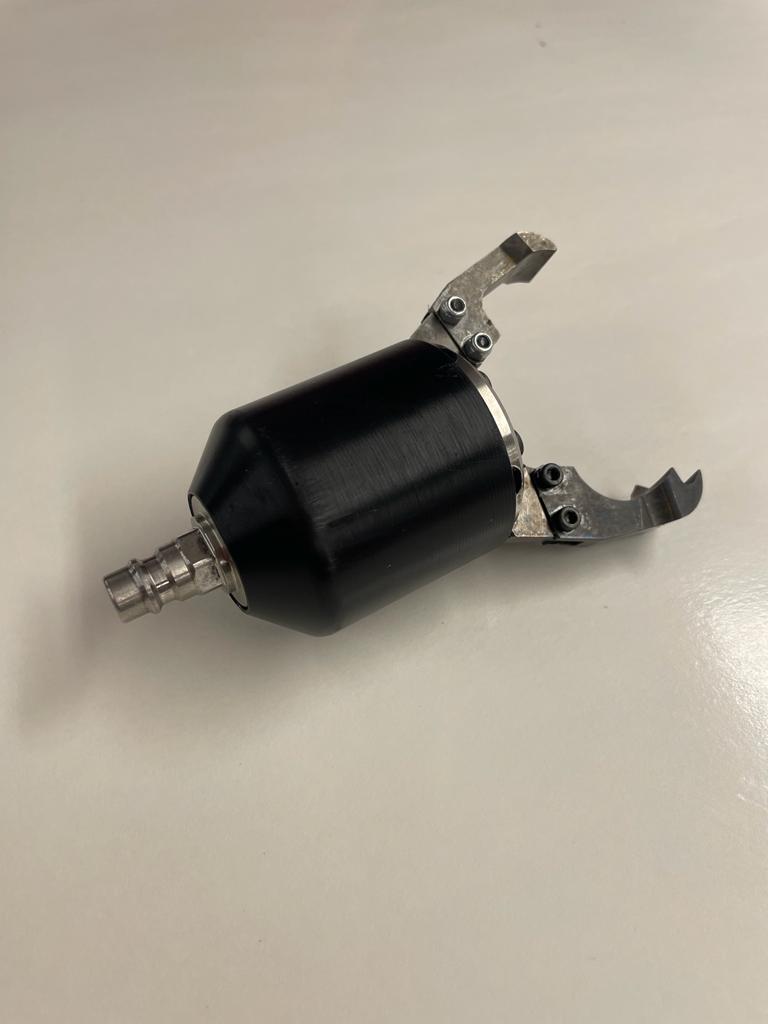

Grabber Heads available

Large Grabber Head for Push Rods for DN200 (8") and above

Original Grabber Head for Push Rods for DN100 (5") and above














How to use

The Picote Push Rods are a flexible, multi-use and reliable addition to your CIPP toolbox.

Use for CIPP installations, lost object retrieval (with the Grabber Heads), and even reinstatements, concrete removal and more when combined with the Picote Mini Multi-Cutter!

Picote Push Rods can also carry steam to speed up the curing process!

Check out some of our case studies:

Connection Collar Case Study

All Picote Case Studies

Push Rods Blog!

Downloads

US Catalog
Download file
Metric Catalogue
Download file

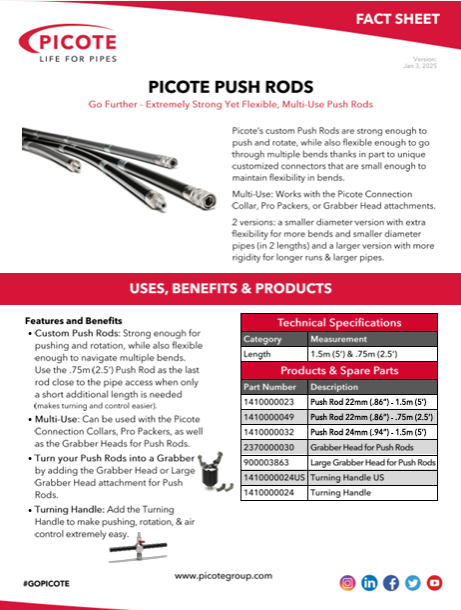

Fact sheet
Download file
Find out more

Contact Us About This Product

Thank you for your interest in this product. To get further information about this or any other Picote product, please fill out your contact details and someone will respond as soon as possible. To find out where you can buy this, or any of our products, please contact your Picote Reseller. To find out who the authorised Resellers are for your region, please click here.
