    Picote Mini Lining Cannon
    Products

    Picote Lining Cannon

    The Picote Lining Cannon’s compact design and extremely light weight enables lining where inversion drums just can’t reach. Constructed from heavy-duty transparent polycarbonate and aluminum, the transparent body allows you to watch the liner inversion in real-time, giving more visibility and control.

    Both Cannon sizes come with multiple Inversion Heads and a Fast Cap. This allows you to shoot a liner, clamp it, then disconnect the Cannon altogether and install the Fast Cap. Then simply reconnect your air hose and release the clamp. With the Fast Cap, your Cannon is immediately free again for another liner install.

    Also available: the NEW Cannon Fast Cap with Smart Heat Cable Inlet. Use with the Smart Heat Miller/Cable for faster curing with no steam, water or mess!



    Contact us
    Specification Images & videos Downloads Where to use Accessories
    Uses and benefits
    • Compact lightweight design - extremely portable!
    • Transparent body gives more visibility & control.
    • Camera insert creates an airtight seal around the camera line, keeping the liner inflated, allowing you to push the camera down the pipe for inspection prior to curing.
    • Built-in pressure relief control.
    • Maximum operation pressure of 2 bar (29 psi).
    • A lining rope can also be brought through the Cannon air sealing package with the camera rod. This enables you control the liner during installation process (if needed).
    • Cannon Fast Cap with Smart Heat Cable Inlet Allows you to insert a Smart Heat Cable making the liner curing process faster. Package includes both Mini & Maxi Smart Heat cable gaskets.



    Technical spec

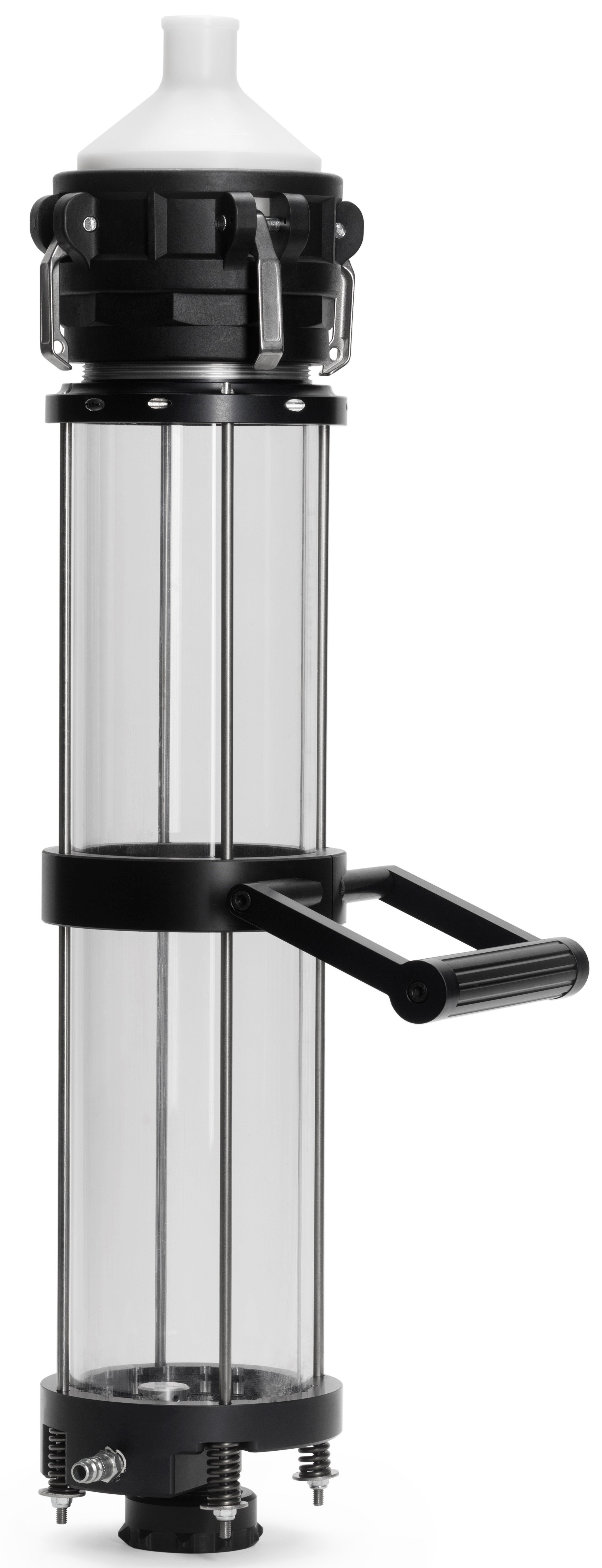

    Mini Cannon Technical Specifications
    Empty Weight 4.8kg (10.5 lbs)
    Full Weight 10kg (22 lbs)
    Overall Length 67.3cm (26 ¹⁄₂")
    Liner Capacity
    DN50 (2") 7.5m (24.5 ft)
    DN75 (3") 5m (16.5 ft)
    DN100 (4") 3.5m (11.5 ft)

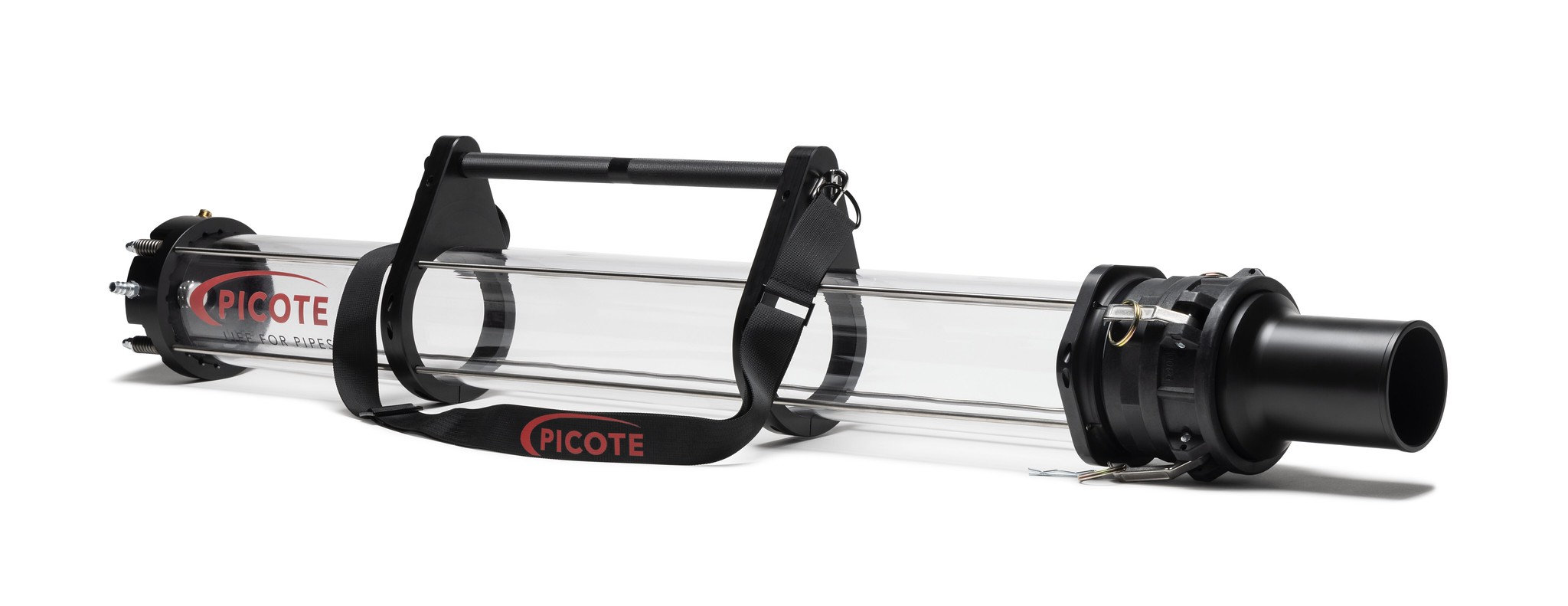

    Original Cannon Technical Specifications
    Empty Weight 6.2kg (14 lbs)
    Full Weight 15kg (33 lbs)
    Overall Length 117.5cm (46 ¼")
    Liner Capacity
    DN50 (2") 15m (49 ft)
    DN75 (3") 10m (33 ft)
    DN100 (4") 7m (23 ft)





    Allow marketing cookies here to watch the video.

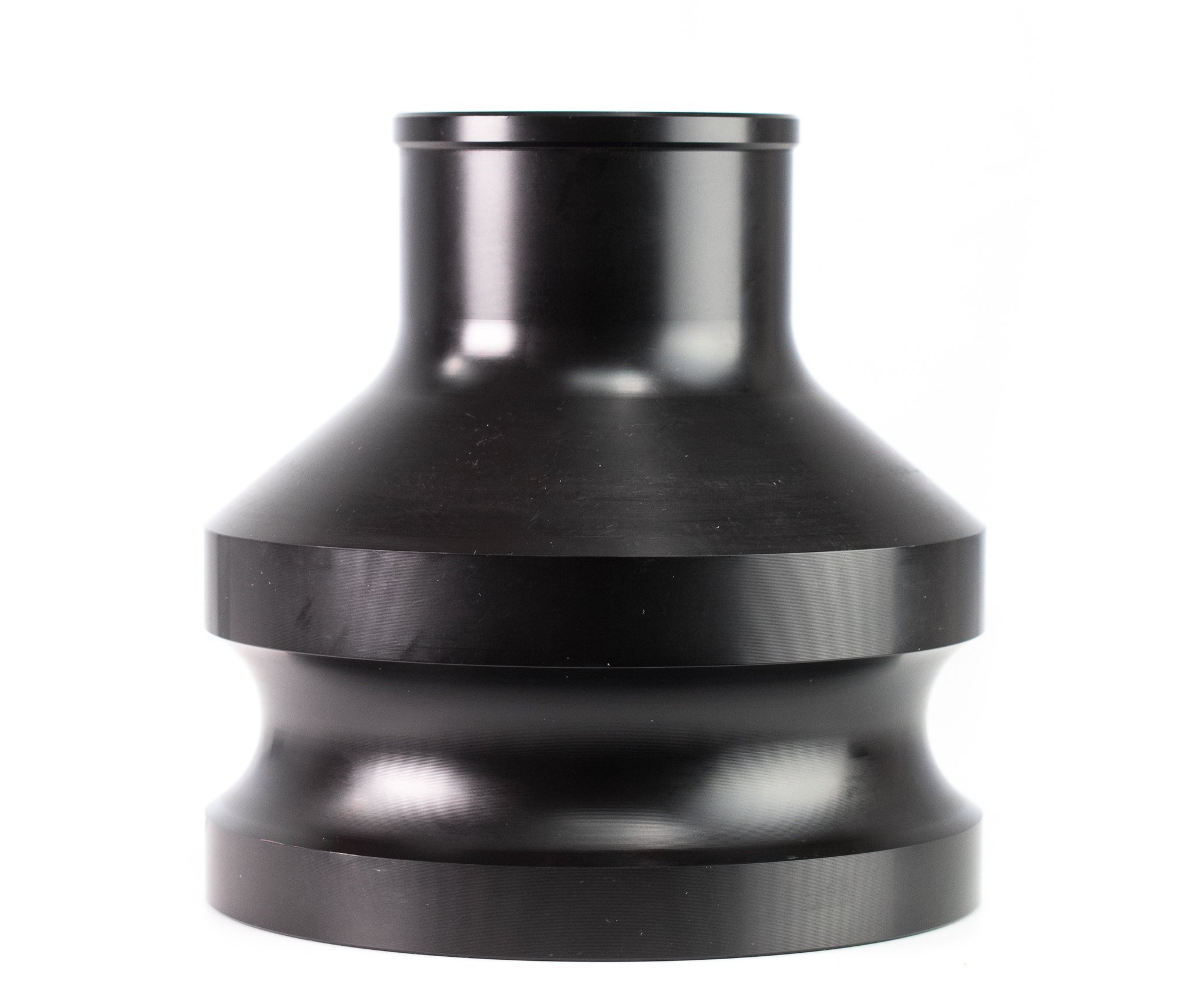

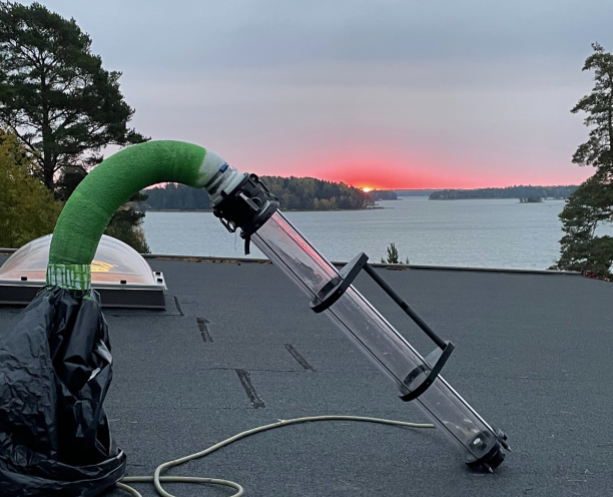

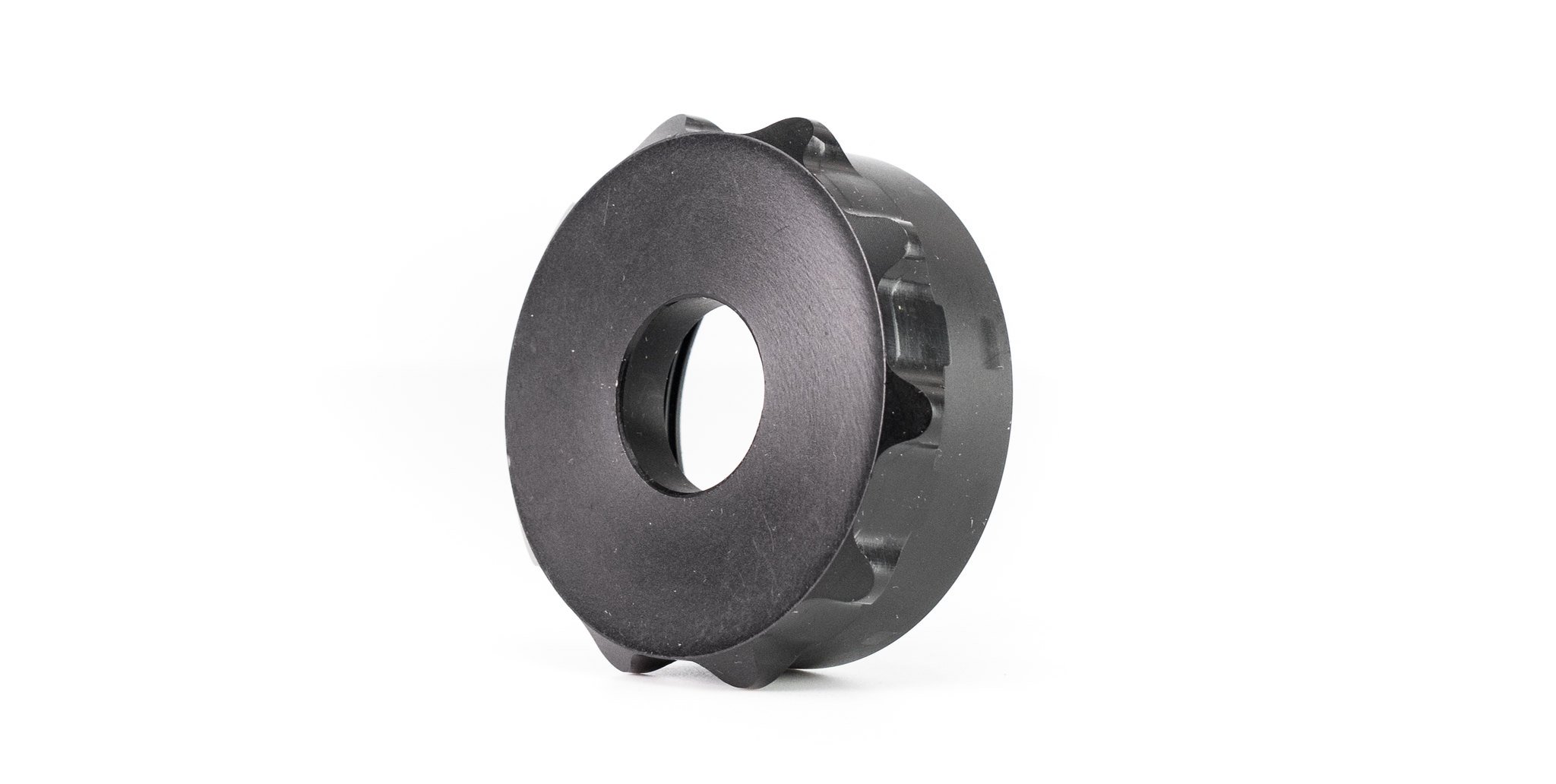

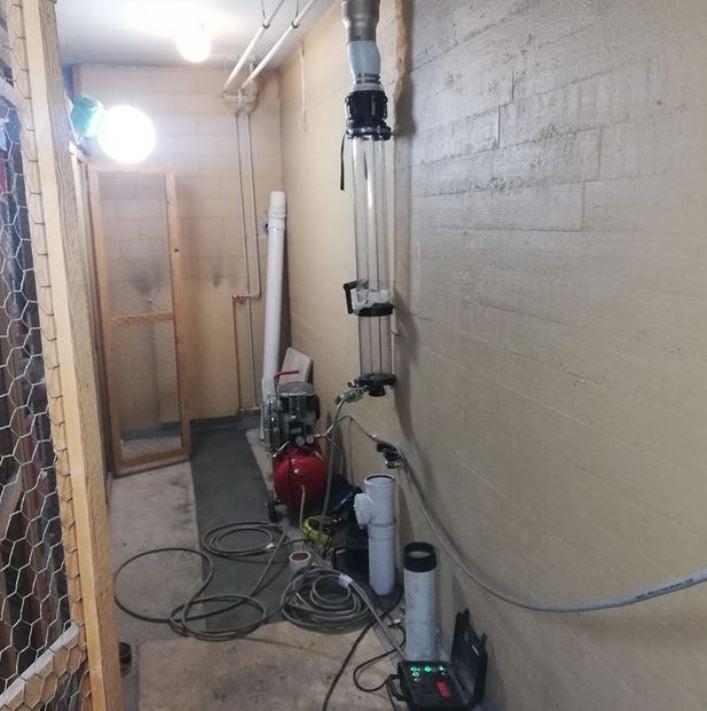

    Picote Mini Cannon Picote Original Cannon Cannon Fast Cap Cannon Inversion Head Cannon Cap for CCTV Access Picote Lining Cannon_worksite 2 Picote Lining Cannon_worksite 1

    Downloads

    US Catalog
    Download file

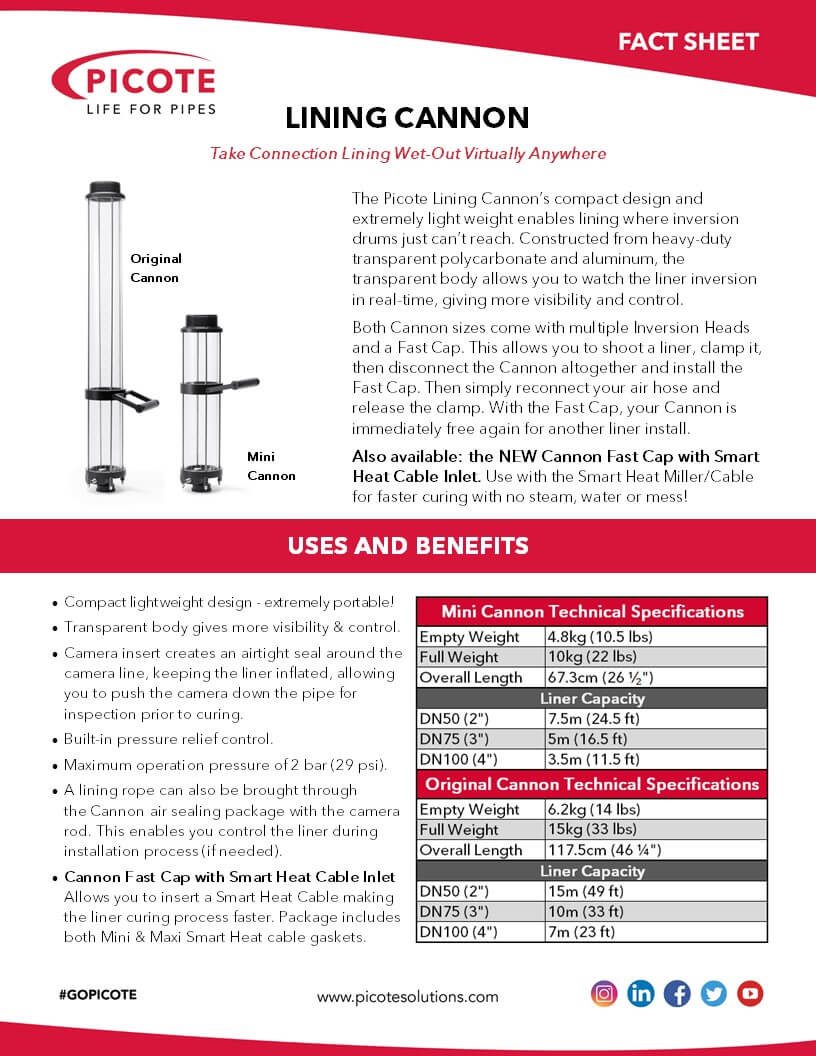

    Fact sheet
    Download file
    Manual
    Download file
    Metric Catalogue
    Download file
    German Catalogue
    Download file
