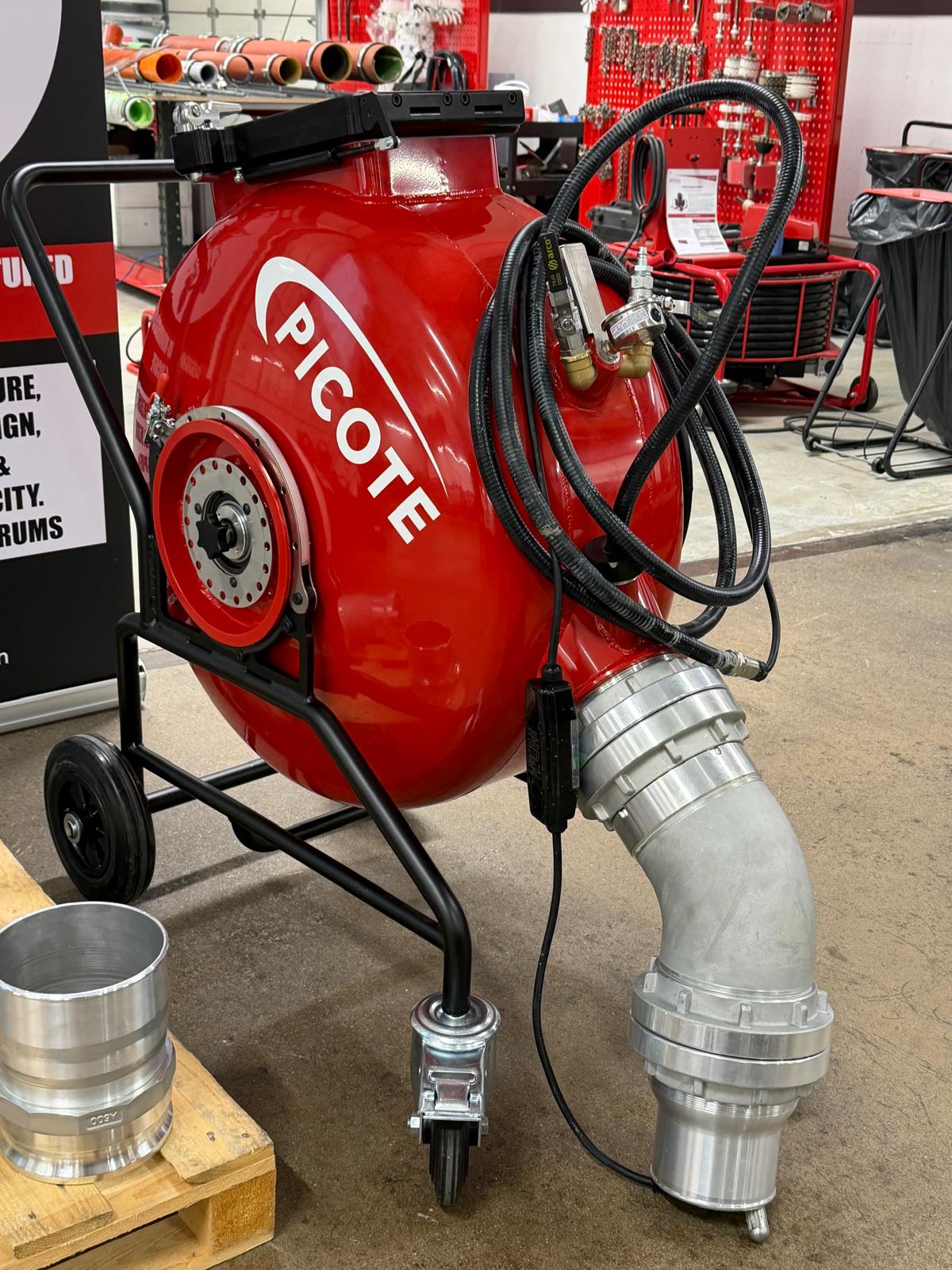

    Picote Lining Drums

    The NEW Picote Lining Drums are packed with functionality and with a host of convenient design features, offering contractors an easy and practical solution for installing CIPP lining.

    Designed by CIPP experts who've lost count of the pipes they've lined, you won't find a more user-friendly drum on the market.

    Currently available sizes:

    • Lining Drum 340 (pre-order now!)
    • Lining Drum 550
    • Lining Drum 780

    Coming soon! Lining Drum 780W (Wide)

    All Picote Lining Drums are CE certified.

    We are a certified A2 Class pressure vessel manufacturer.

    Contact us
    Specification Images & videos Downloads Where to use Accessories
    Uses and benefits

    550 & 780 Models:

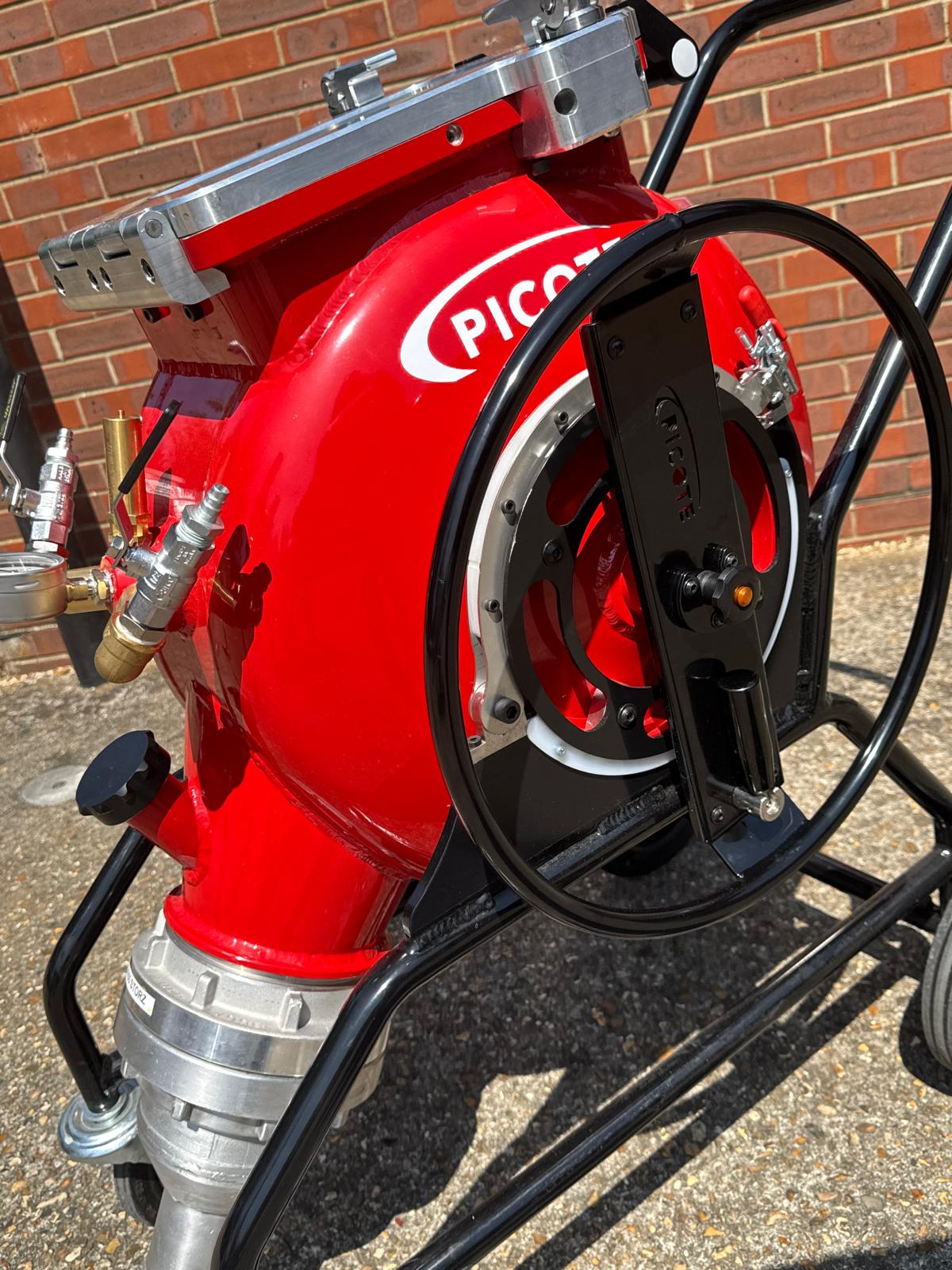

    • 2 Stage Fast-Action Door: Fast, safe & secure opening & locking

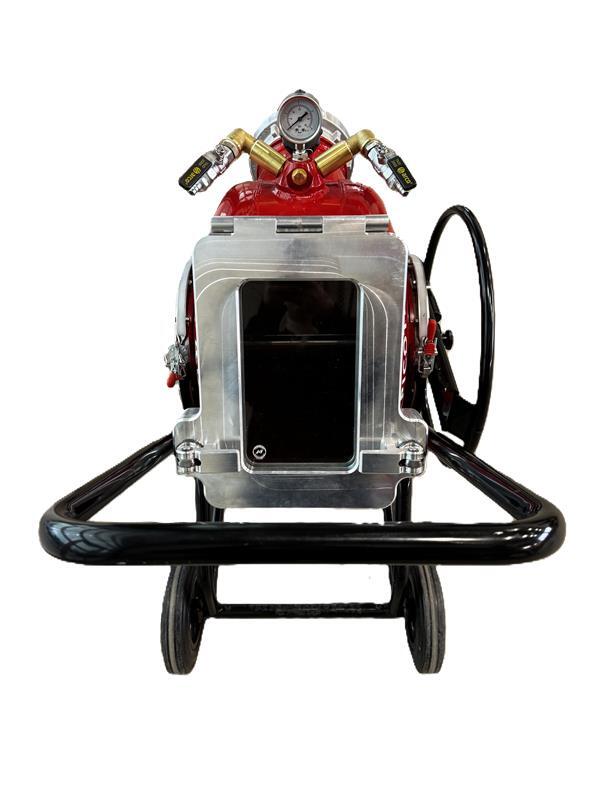

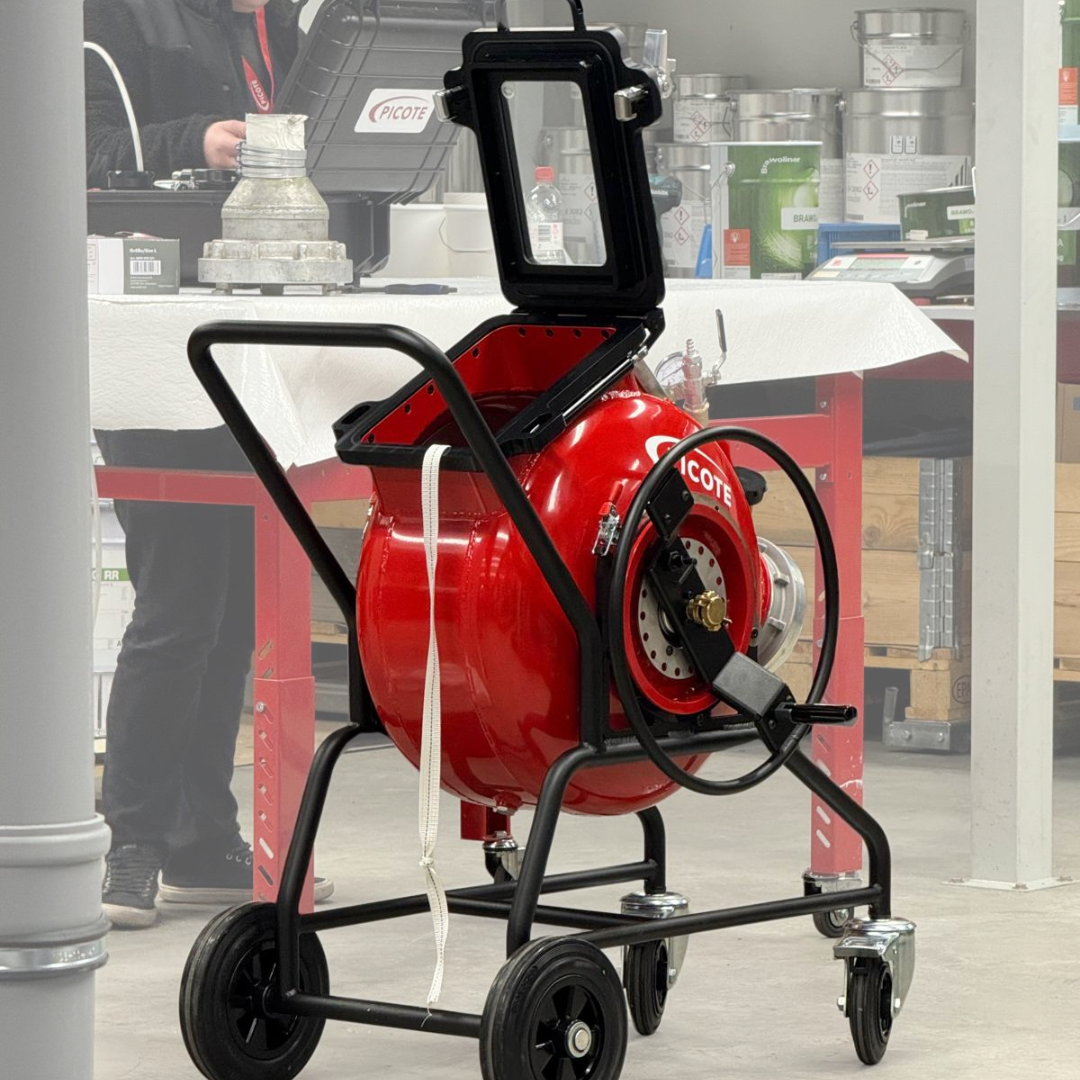

    • Oversized rectangular hatch with large viewing window for easier loading and to see clearly inside without opening door.
    • Expanded Capacity: Lining Drum 550 has a capacity of up to 45m (147') of DN100 (4" liner) and Lining Drum 780 can hold up to 101m (331') of DN100 (4") liner.
    • Removable support ”baffles” inside drum. More liner can be fitted inside when these are removed.

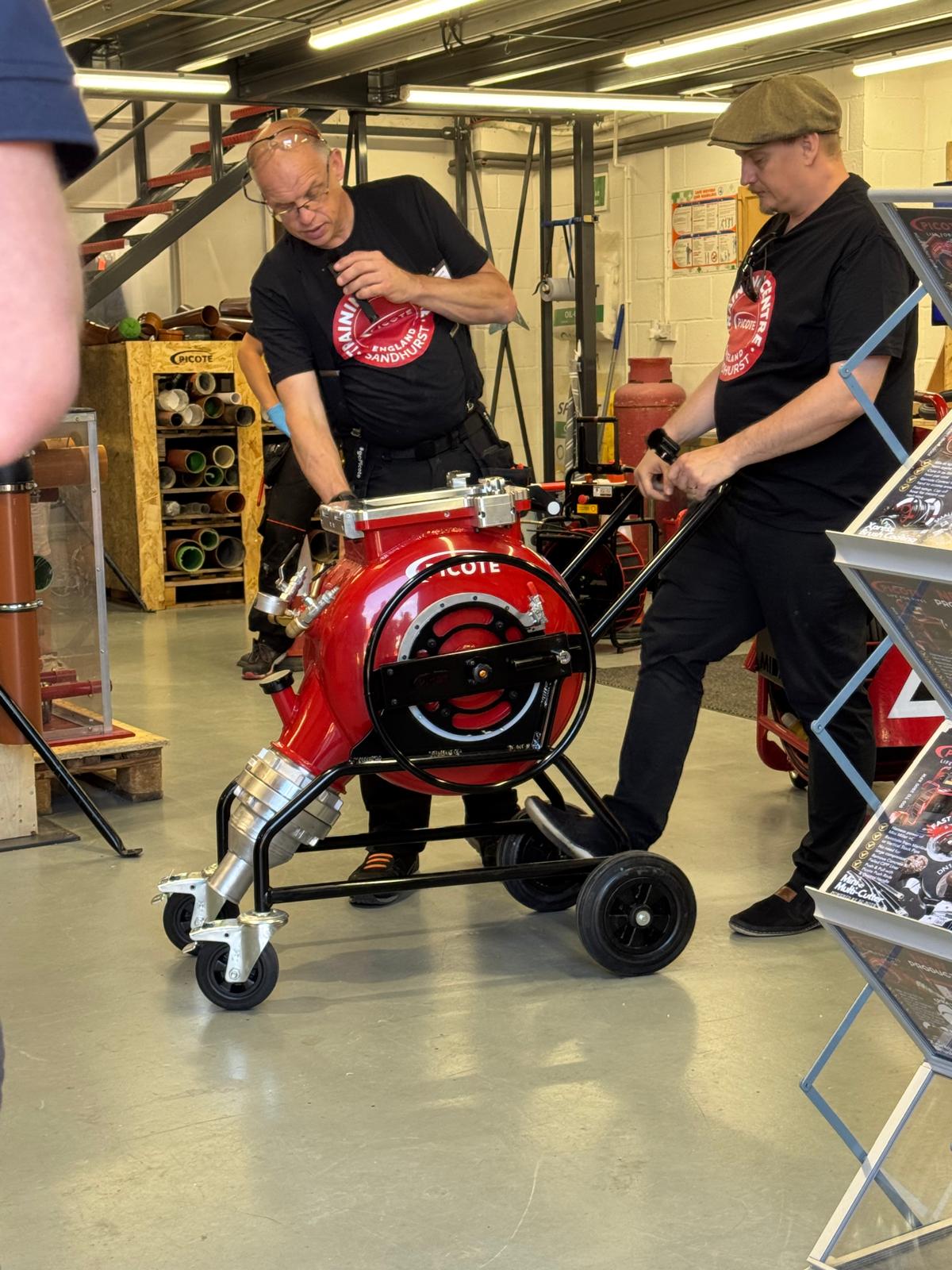

    • Side-to-side switchable turning wheel with foldable handle.
    • Heavy duty friction bands giving unlimited stepless orientation of nozzle (can withstand 20kg/44lbs suspended 50cm/1.6ft in front of front wheel).

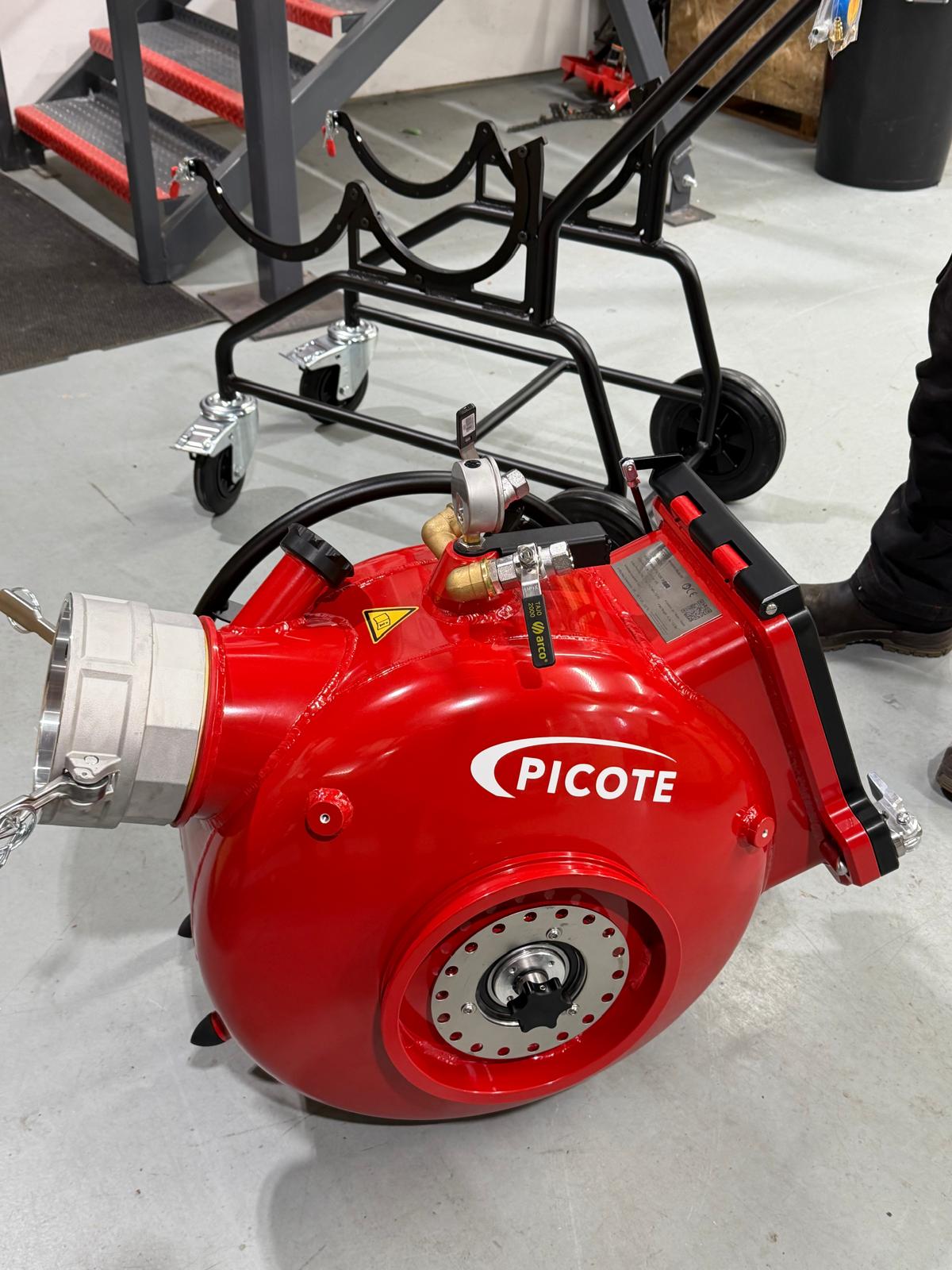

    • Quick-release of drum from trolley with dual-purpose securing bands.
    • Good ground clearance for navigating steps and doorsills.
    • Large diameter wheels for rolling on softer surfaces.
    • Sturdy trolley with offset centre of gravity/front wheels located further forward, to balance heavier UV curing rigs/equipment.
    • Lightweight: 550 is 50kg (110 lbs) & 780 is 65kg (143 lbs).
    • Narrow: designed to fit through doorways.
    • High Operating Pressure: 1.7 bar/25 PSI.
    • Multiport for CCTV, Smart Heat cable or steam application.
    • Easy to adapt to either 6” Storz or 6” Camlock.

    340 Model:
    • Expanded Capacity: Lining Drum 340 has a capacity of up to 10m (32') of DN100 (4") liner.
    • Fold Away Transport Handle.
    • Versatile Multi-Port:· Allows integration of CCTV, Smart Heat Cable, or steaming.
    • High Operating Pressure: 1.7 bar/25 PSI.
    • Lightweight: 340 is 11.5kg (25.4 lbs).
    • Easy to adapt to either 4” Storz or 4” Camlock.

      *Liner capacity is an estimate and is influenced by liner type, thickness, width and how the drum is loaded.
    Technical spec



    Category Drum Model / Spec
    Pipe Range

    340: DN50-100 (2-4")

    550 & 780: DN50-225 (2-9")


    Drum Weight

    340: 11.5kg (25.4 lbs)

    550: 50kg (110 lbs)

    780: 65kg (143 lbs)



    Drum Dimensions (WxLxH)

    340: 410x370x277mm 16.1x14.6x10.9"

    550: 89.5x917x1028mm
    23.2x36.1x40.5"

    780: 624.5x917.5x1131mm
    24.6x36.1x44.5"



    Liner Capacity of DN100 (4") liner*

    340: 10m / 32'

    550: 30m / 98'

    780: 101m / 331'


    Curing Methods

    Ambient, Hot Water, Steam & UV





    Book a FREE 30-minute bite-sized virtual demo with us. Explore the Picote Lining Drum range from the comfort of your own home or office. You'll get to speak with one of our technical team and ask questions as they personally show you the Picote Lining Drum range. Contact us here and we will arrange a time for the call and send you a link to join. It's that simple!

    Allow marketing cookies here to watch the video.

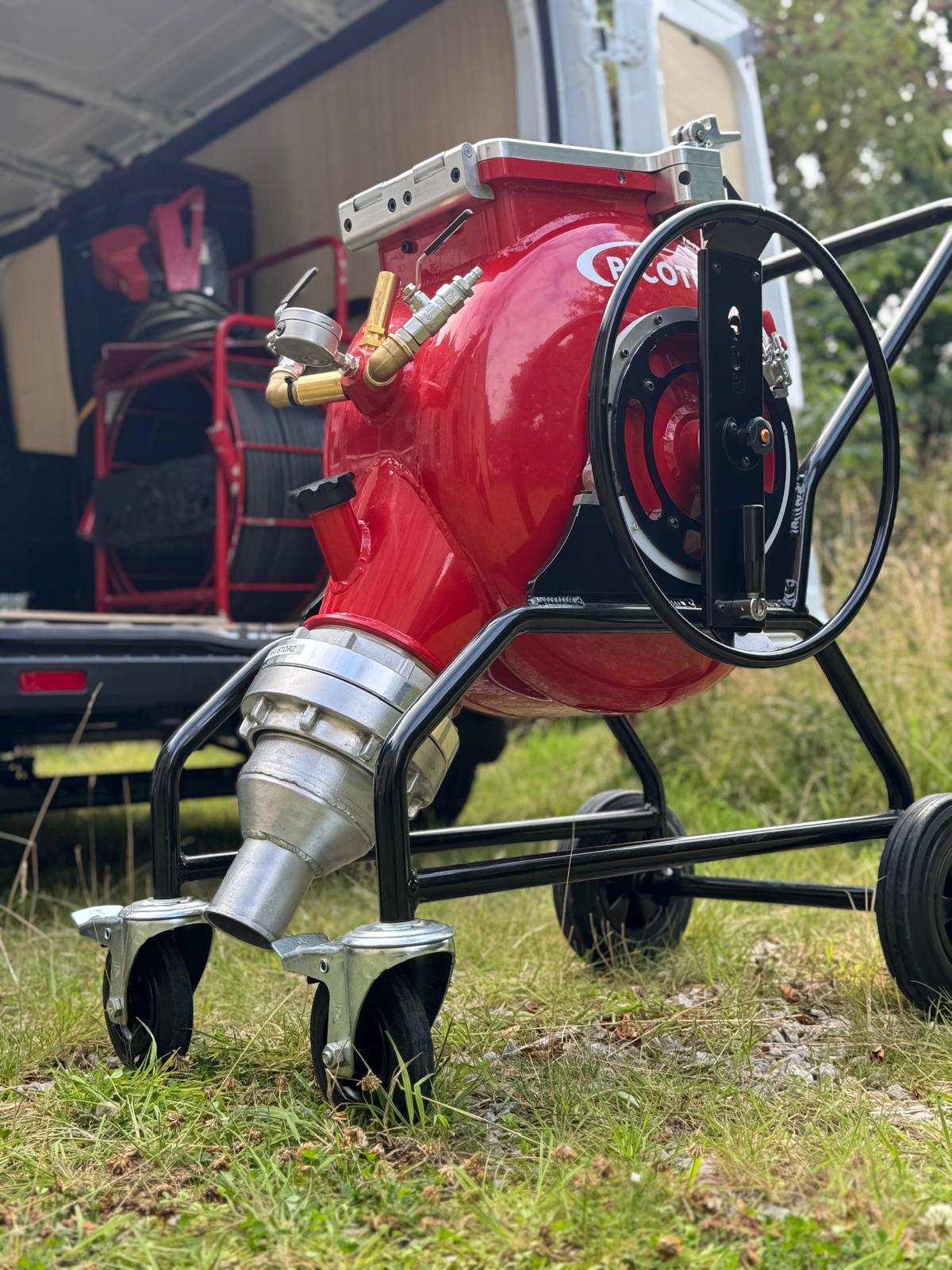

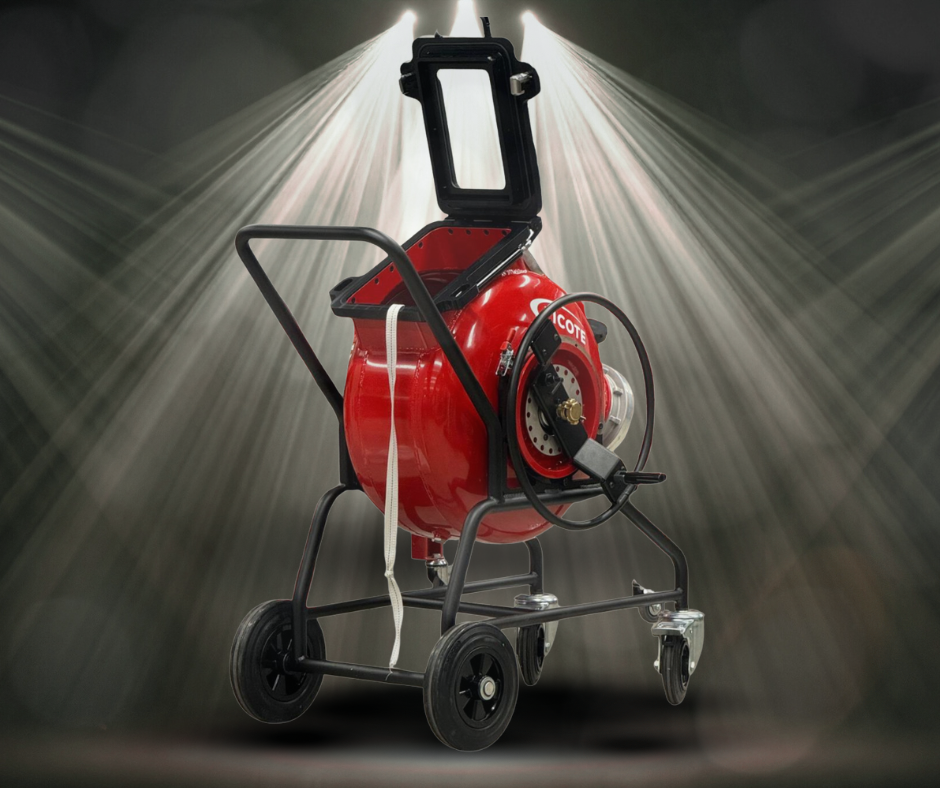

    CTA LINING DRUM LINING DRUM SCOTLAND 1 Picote Inversion Drum D550 CIPP LINING DRUM SCOTLAND 4 LINING DRUM SCOTLAND 2 LINING DRUM SCOTLAND 3 LINING DRUM SCOTLAND 5

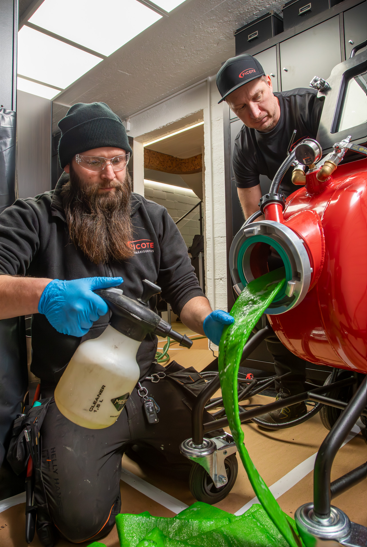

    How to use

    Additional Picote tools such as the Liner Compressor and Curing Caps allow the inversion drums to be used on multiple liners in a single day, improving not only lining quality but efficiency.

    Offers contractors an easy and practical solutions for installing CIPP lining.

    Book a FREE 30-minute bite-sized virtual demo with us. Explore the Picote Lining Drum range from the comfort of your own home or office. You'll get to speak with one of our technical team and ask questions as they personally show you the Picote Lining Drum range. Contact us here and we will arrange a time for the call and send you a link to join. It's that simple!

    Downloads

    US Catalog
    Download file
    Metric Catalogue
    Download file

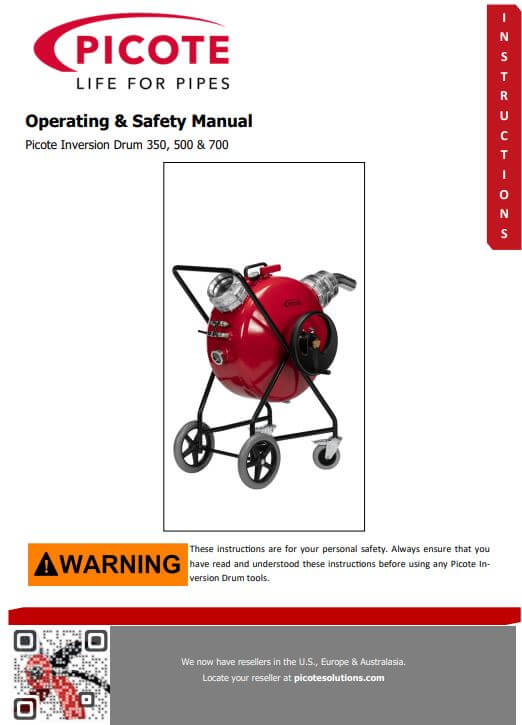

    Manual
    Download file

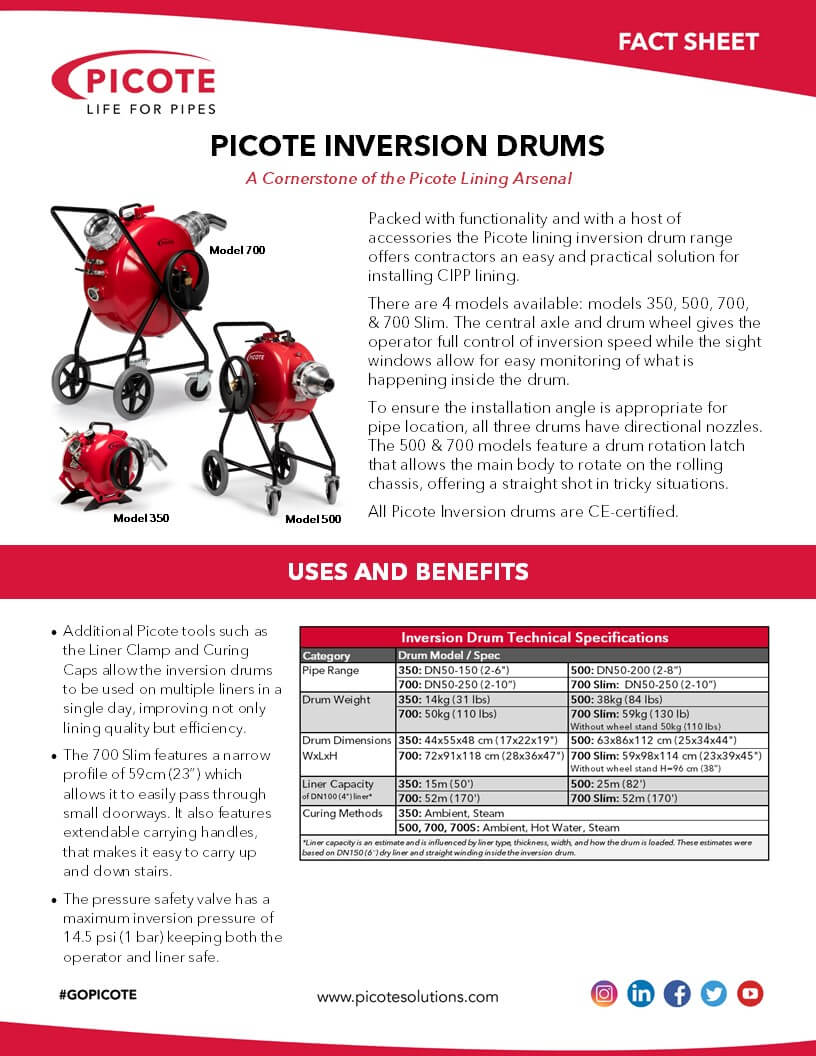

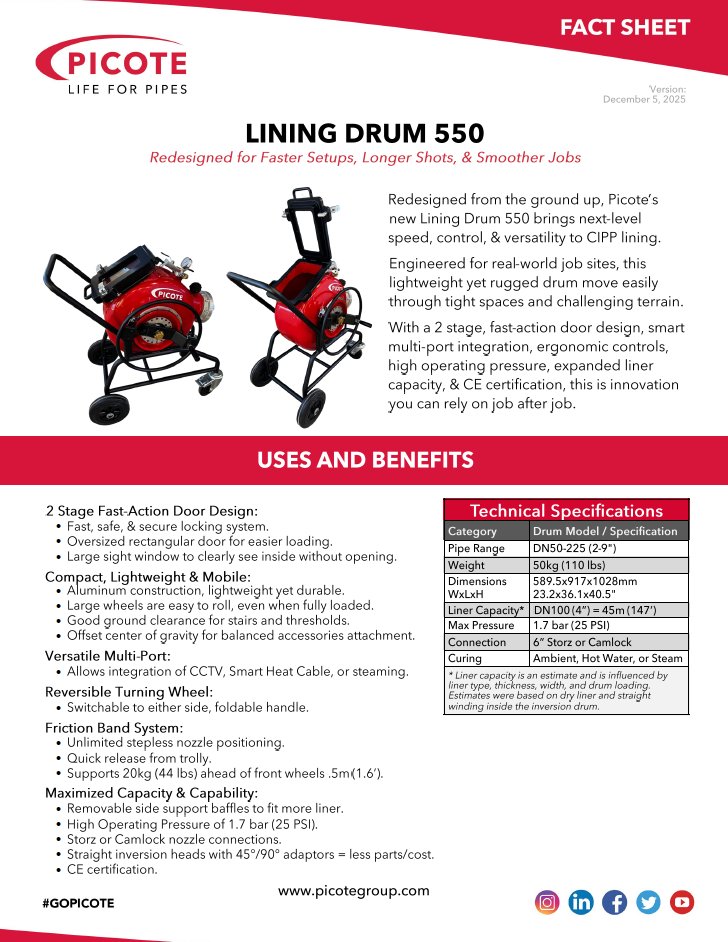

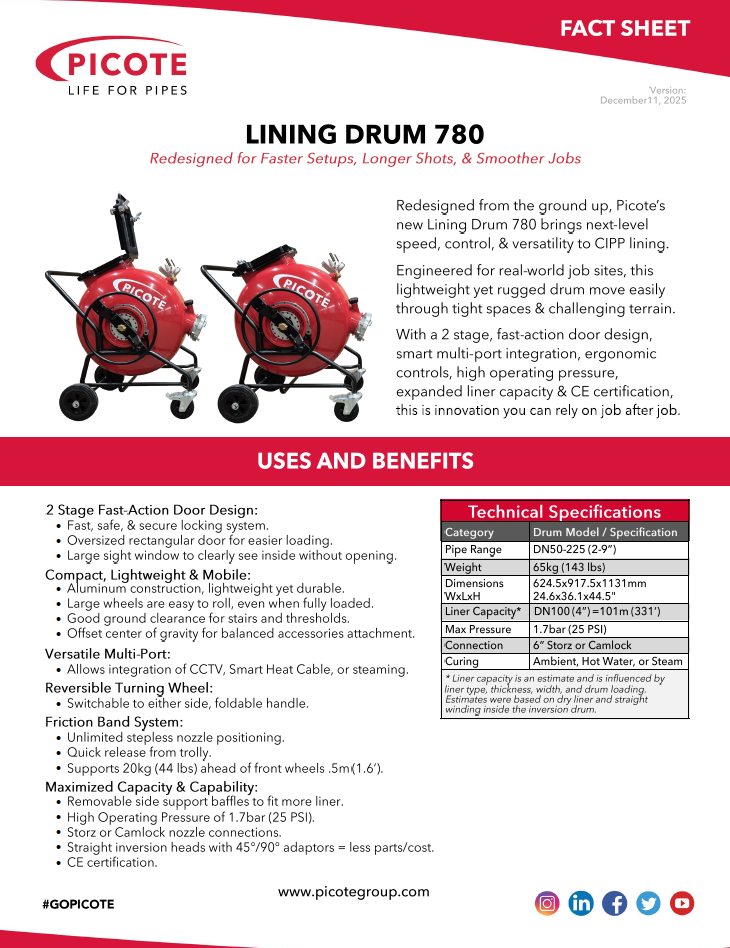

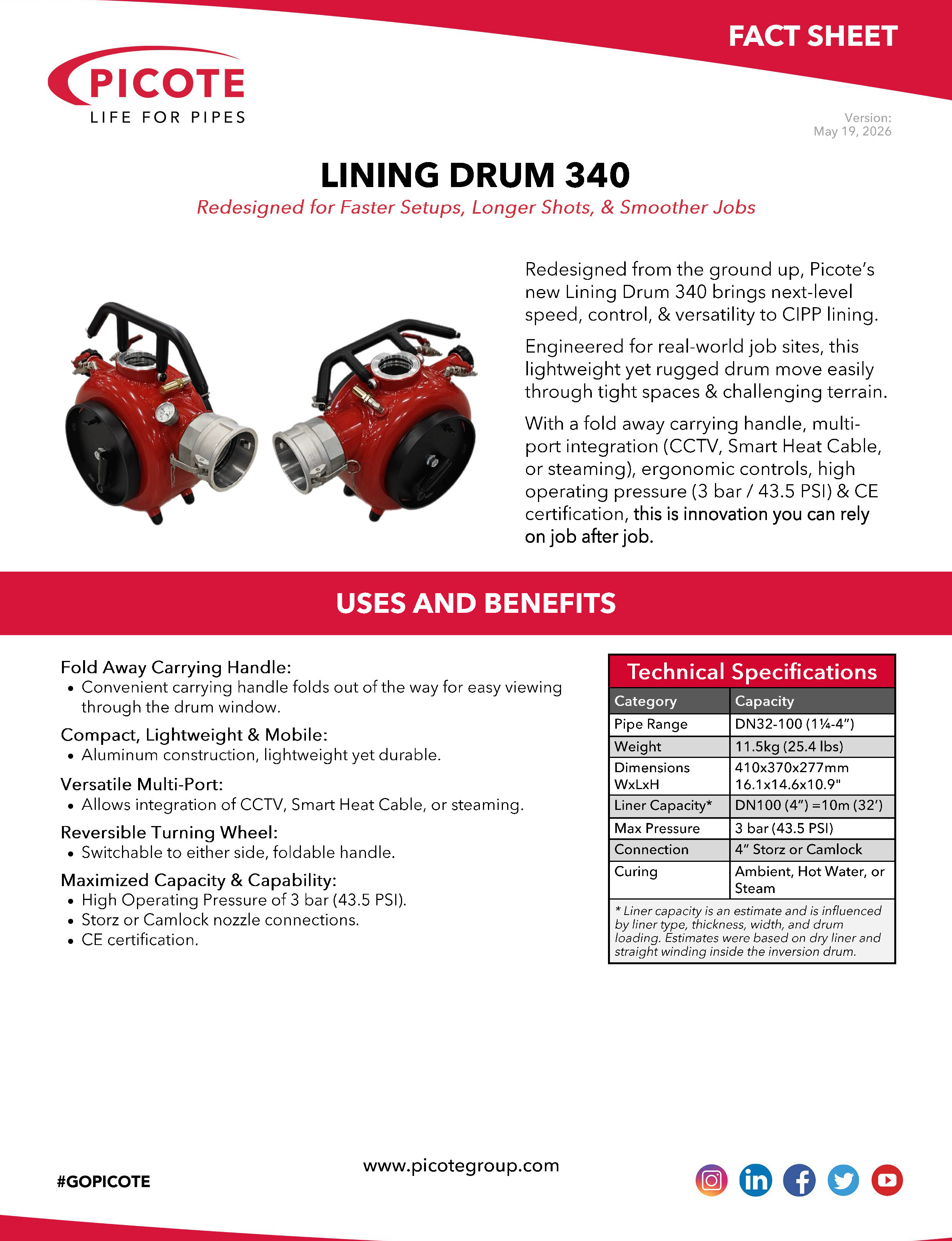

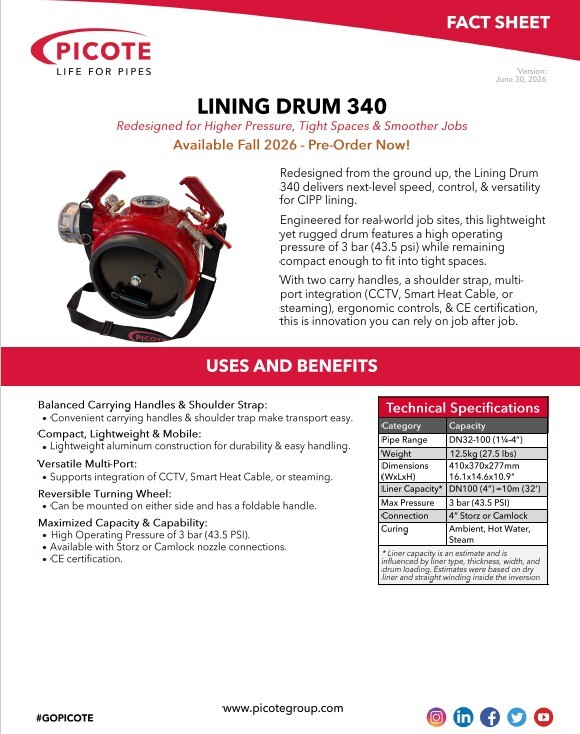

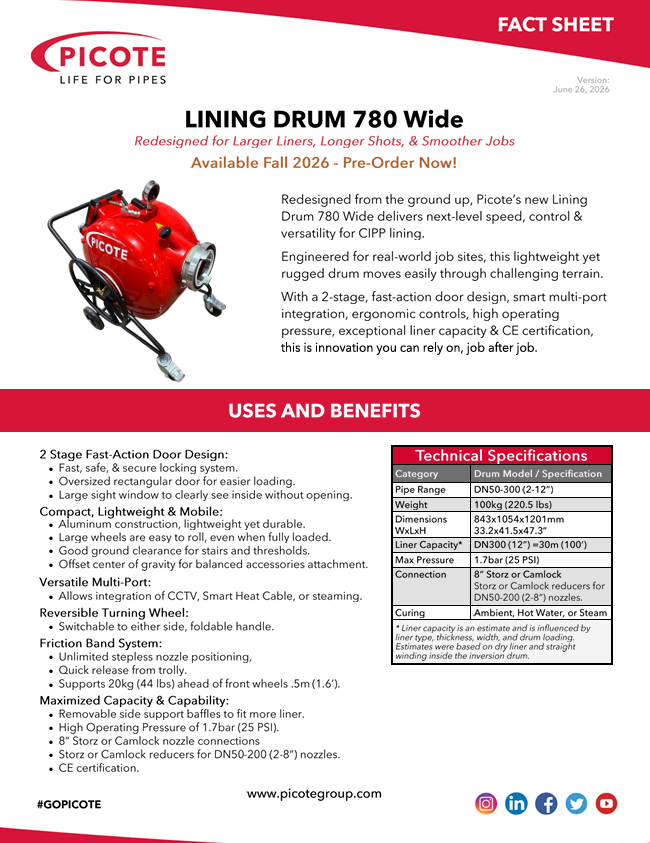

    Fact sheet
