Picote Smart Mixer 2.0

Battery powered (Li-ion battery) cartridge mixer. Suitable for use with the Picote Brush Coating™ System or for dispensing Smart Fill.

  • Brush Coating - Mini Pump
  • Brush Coating - Maxi Pump
  • Smart Fill - Mini Pump Delivery Hose
Specification Images & videos Downloads Where to use Accessories
Uses and benefits

The Picote Smart Mixer 2.0 is a highly useful tool for accurate and proven mixing results when pumping Picote 2-part 100% Solids Epoxy or Smart Fill.



Picote 100% Solids Epoxy is specially formulated to work in harmony with the Picote Brush Coating™ System. Both ASTM and NSF/61-5 certified. The easy lock & load cartridges work with the Picote Smart Mixer to offer a simple, mess-free solution. Improve quality control with the unique dual colour system to visually verify any spots that have been missed.

The battery powered Picote Smart Mixer is intended for mixing the Picote Dual Coat 100% Solids Epoxy for the Picote Brush Coating System and it is specially calibrated for use with Picote products.

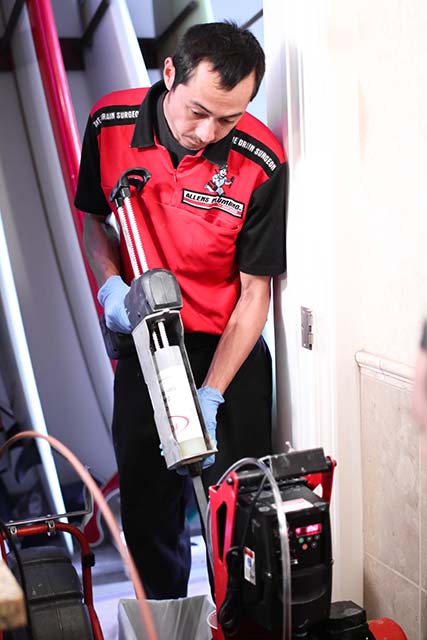

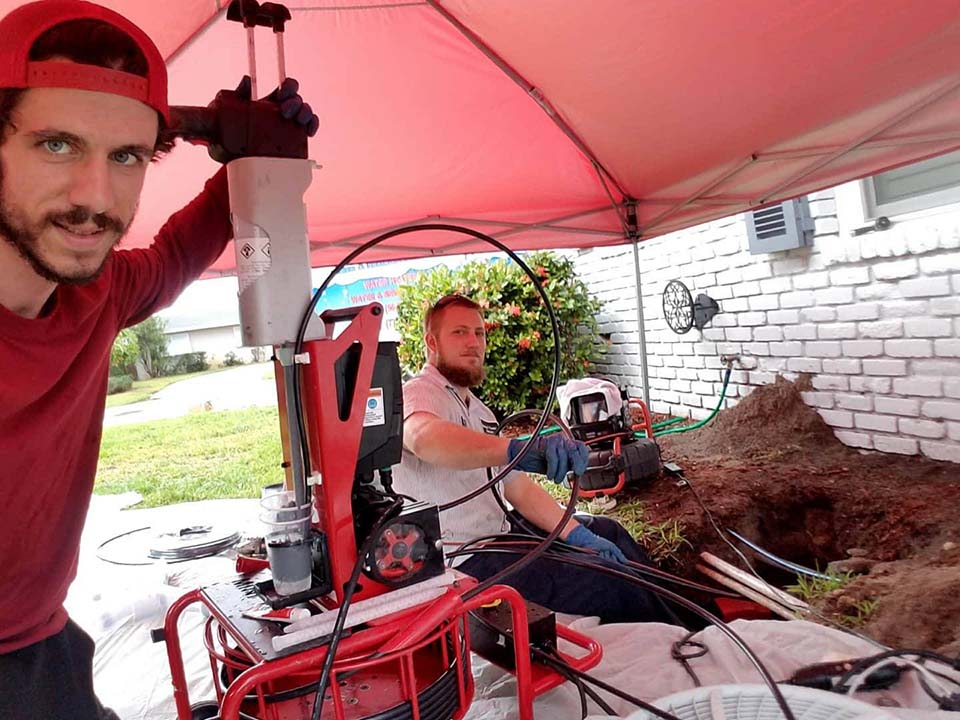

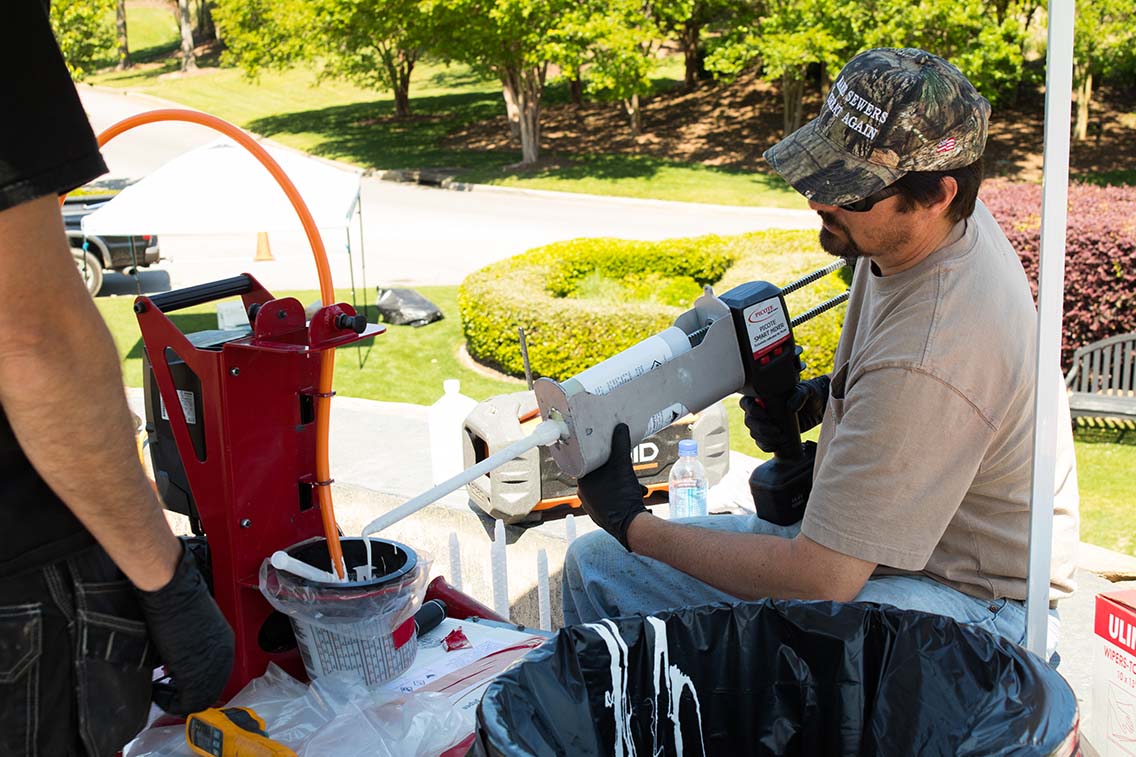

Use with the Picote Mini Miller or Maxi Miller Coating Pump to apply the resin. Take away the strain, simply fit to the pump bracket then lock & load the Smart Mixer with the dual-colour cartridges and get pumping!



Technical spec
Ratio  2:1 (600x300ml)                      1:1 (600x600ml)
Weight 9.3 lbs (4.2kg)
Thrust Factory    set    up    to    1,800    lbs    (8kN)
Speed Variable up to 6’’/min (2.5mm/sec)
Battery 20v    Li-Ion
Charger One    hour    quick    charge    110V    (240V    model    available)
Battery Capacity up    to    30    cartridge    sets    (material    dependent)



Downloads

US Catalog
Download file
Metric Catalogue
Download file
Fact sheet
Download file
German Catalogue
Download file
100% Solids Epoxy
ASTM & NSF 61.5 certified. WRc Approved method.

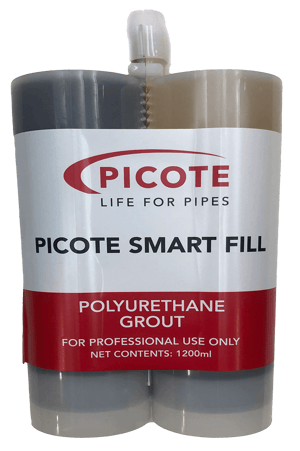

Smart Fill
Injectable Polyurethane Foam
