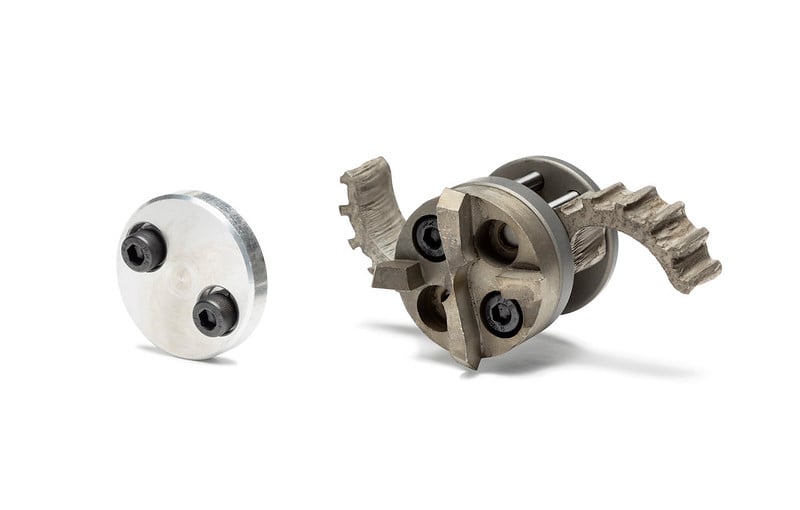

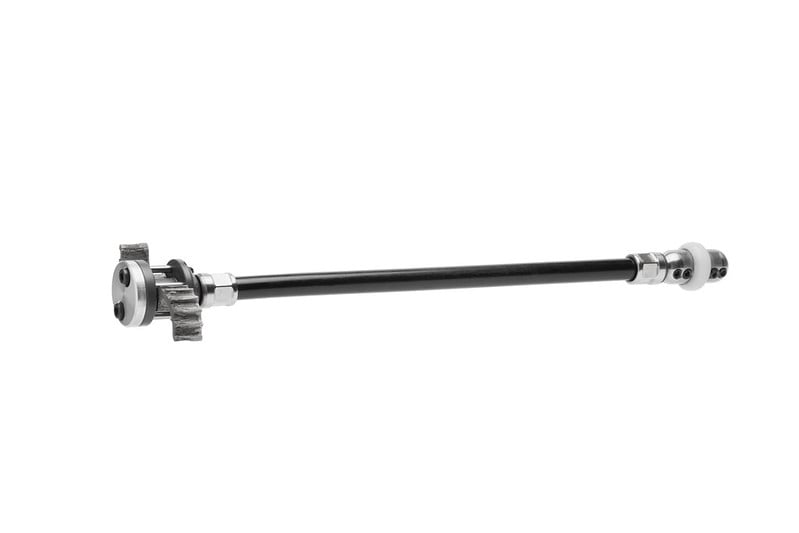

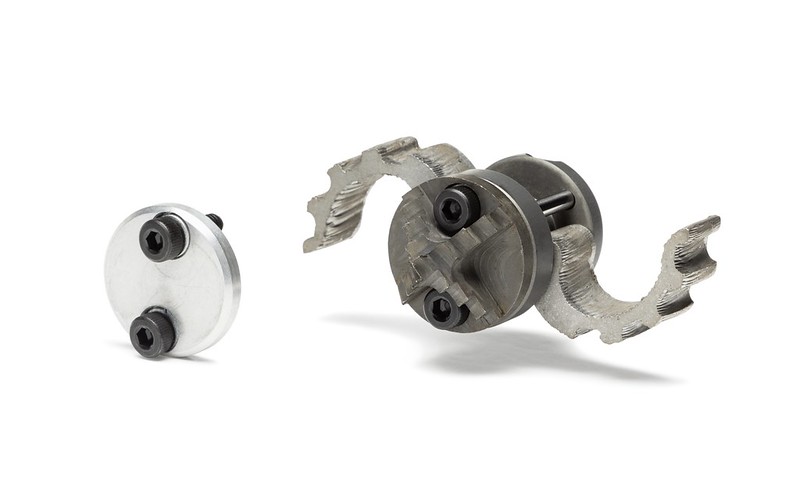

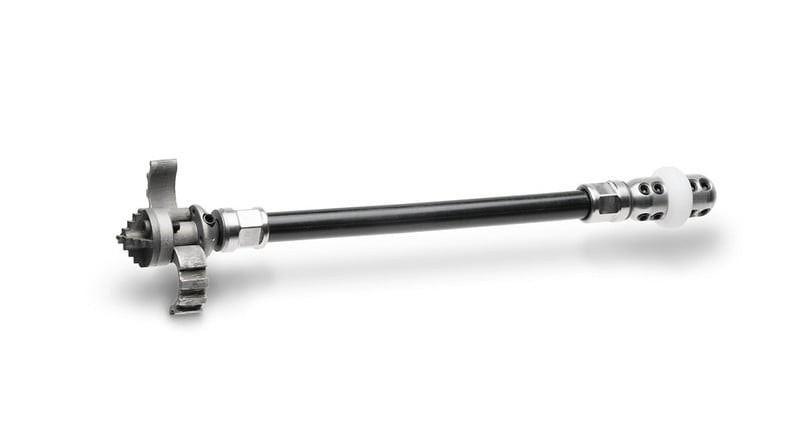

Mini Smart Sweeper

Mini Smart Sweeper

When in doubt, get the Sweeper out! Versatile tool for tough cleaning scenarios including tuberculation, roots, calcite, & mineral/uranic scale in cast iron, concrete, clay, & PVC pipes.

The ability to attach a front drill head further broadens the capabilities and makes it a formidable tool for clearing blockages. The legs are designed to remove the remainder of the blockage.

The self-centralizing design adapts to the pipe size and allows the tool to pass through 90° bends, diameter transitions, and P-traps. It can also be used in damaged pipes where the bottom is missing provided the missing section is no larger in size than the Sweeper body.

Specification Images & videos Downloads Where to use Accessories
Uses and benefits
  • The smaller the pipes the more difficult it becomes to access them. However, the Mini Smart Sweeper is right at home in tight spaces — even in DN50 (2”) pipes.
  • The Mini Smart Sweeper is compact and self-adjusting to tackle P-traps and challenging bends.
  • Rebuildable by swapping out the hardened steel legs.
  • Easily goes through 90° bends.
  • Removes hard tuberculate and grease in small pipes, including bathroom and kitchen lines.

    Larger Sweepers are available for bigger pipes, powered by the Maxi Power+. Please see Maxi Power+ section for details.
Technical spec
Shaft Size Pipe Sizes
8mm (1/3") shaft DN50-75 (2-3”)
12 mm (1/2") shaft DN100 (4")
Recommended Operating Speed
Mini Miller 3-5
Mini Cleaner 2-4
Super Midi, Midi Cleaner & Maxi 100%
Pipe Materials Cast, Concrete, Clay, & PVC
