    Mini Coating Pump
    Products / Brush coating

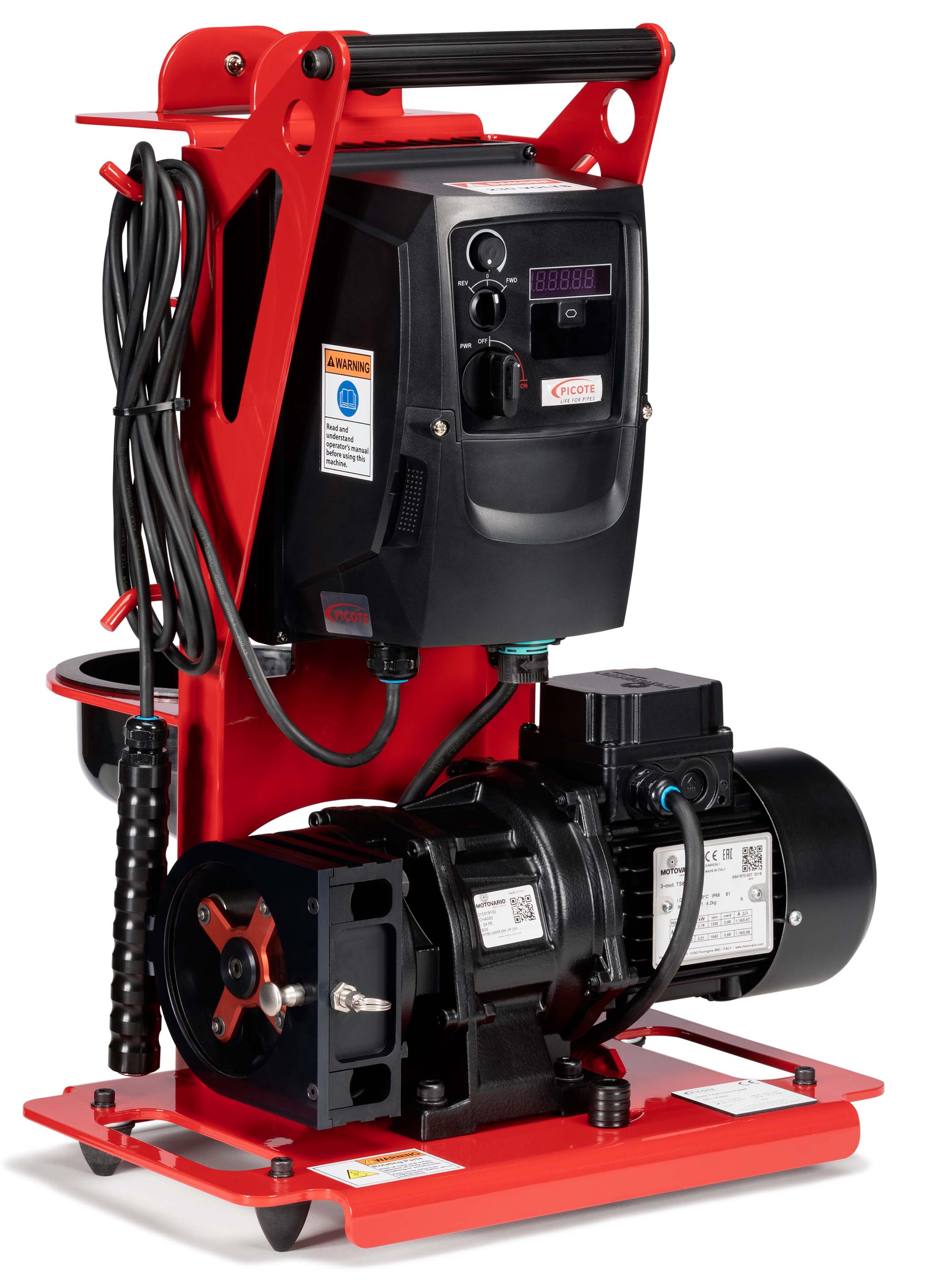

    Mini Coating Pump

    The Mini Coating Pump can be combined with several different Miller models to meet your Picote Brush Coating™ project needs based on pipe length and diameter.

    Allows coating and pipe degreasing in DN32-200 (1½-8”) diameter pipes up to 22m (75’) in length.

    Contact us
    Specification Images & videos Downloads Where to use Accessories
    Uses and benefits
    • Controls the flow of Picote Brush Coating™ DC1000E, Dual Color Epoxy Resin.
    • Adjustable pump speed & direction.
    • Hand-held locking operator control trigger. When the button is pushed the pump is engaged and will operate until pressed again.
    • Combine and secure the Mini Coating Pump to the Mini Miller, Mini Cleaner, or Super Battery Mini Miller/Mini Cleaner frames for a portable compact system.
    • Can also be used to remove fats, oils, and grease from pipes by pumping degreaser down the line to assist with cleaning.
    • Includes Resin Cup Package, 3x Hose Connectors, Hose Clamps and 2x Brush Stoppers.
    • *NSF61 Certified for DN100 (4”) and larger pipes (final coat in white).
    Technical spec
    Pipe Diameters DN32-200 (1½-8")
    Max Range 22m (75')
    Power UK/US: 110V, 15 Amp
      EU: 220V, 16 Amp
    Output (kw) 0.18
    Weight 16kg (35.5 lbs)
    Size 41x42x54.4 cm
      16.2x16.5x21.5"





    Allow marketing cookies here to watch the video.

    How to use

    The Picote Brush Coating™ system is a simple, fast, and practical coating solution used to renovate and prolong the life of stack pipes, drains, sewers, water pipes*, electrical conduits, and more.

    Clean the pipe well and apply two coats for a corrosion barrier. Alternatively, apply additional coats of resin to form a new, seamless semi-structural rehabilitation that should last 30-50 years.*

    Can be combined with several different Miller models to meet project needs based on pipe length & diameter.

    Downloads

    US Catalog
    Download file

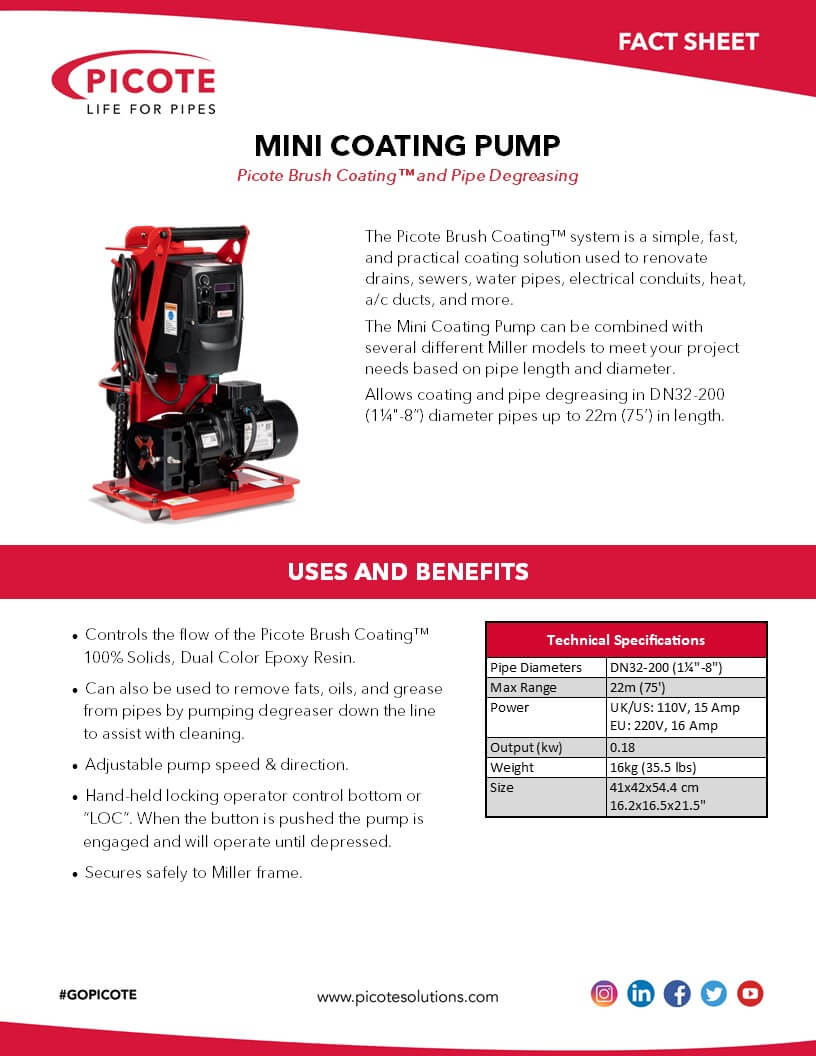

    Fact sheet
    Download file

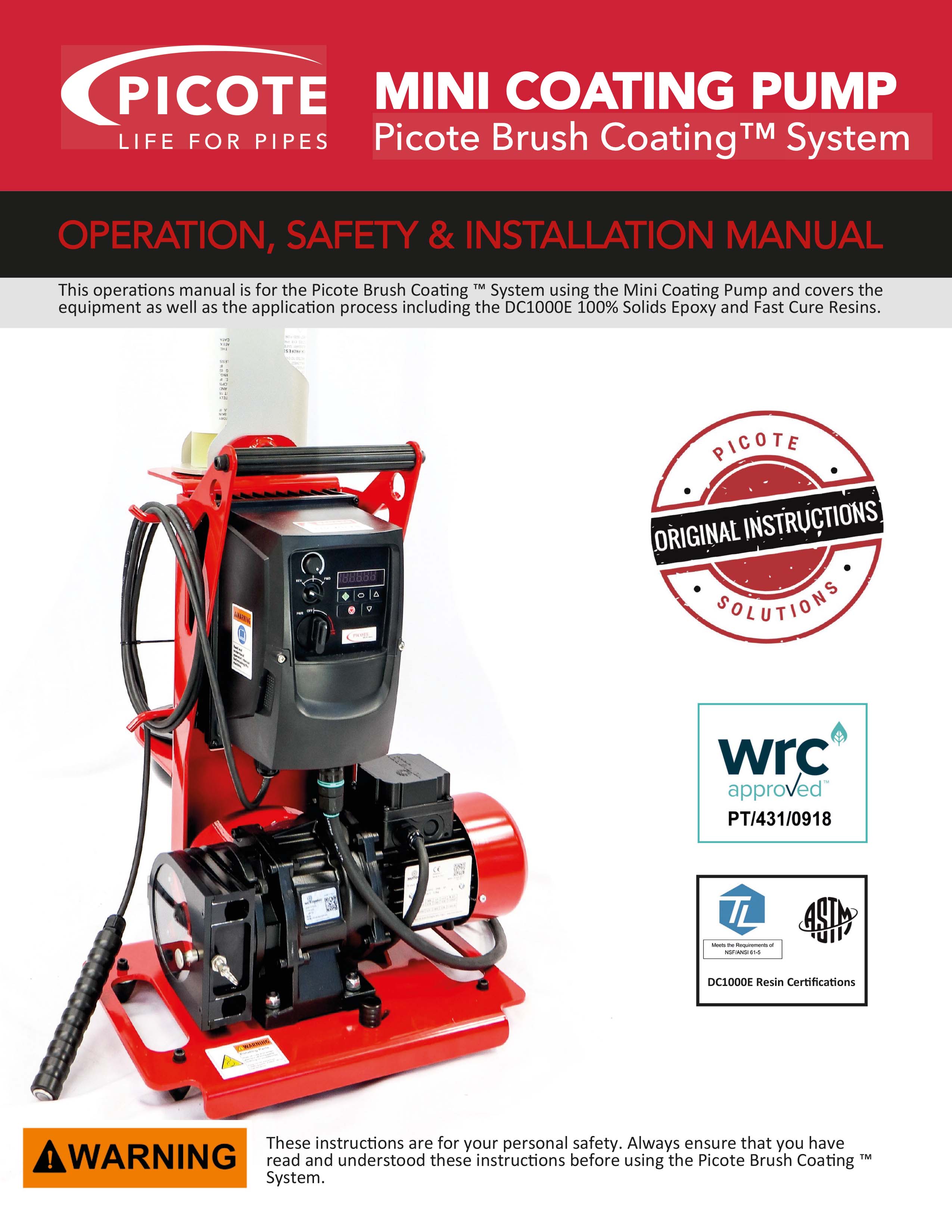

    Manual
    Download file
    Metric Catalogue
    Download file
    Quick Guides
    Download file
    100% Solids Epoxy
    ASTM & NSF 61.5 certified. WRc Approved method.
    Picote Heater
    Designed to speed up drying wet pipes and for decreasing the time between coats for Picote Brush Coating™ applications.

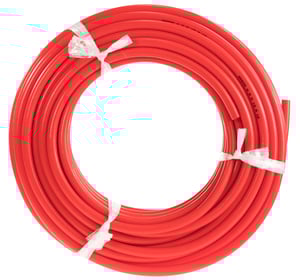

    Resin Supply Hose
    For use inside pump housing of the Mini Coating Pump.

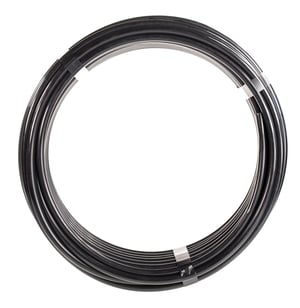

    Delivery Hose
    Deliver resin from cup to Mini Pump and from Mini Pump to pipe.

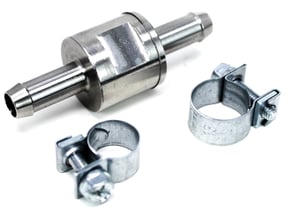

    Hose Connector & Clamps
    For Mini Pump Coating System
    Cleaning / Coating Brush
    High-quality brush with nylon bristles for brush coating and cleaning PVC pipes
    Smart Mixer 2.0
    Battery powered (Li-ion battery) cartridge mixer. Comes in carry case with spare battery, charger & 600ml piston
    Brush Stopper
    Brush Stoppers available for use with Maxi Pump and Mini Pump
    Delivery Hose Lubricant
    Delivery Hose Lube, to pre-lubricate the inner surface of the Coating Pump Delivery Hose to make pumping faster.
