Picote 100% Solids Epoxy Resin

Picote 100% Solids Epoxy Resin. Used to rehabilitate decayed and damaged concrete, pvc,
fiberglass, clay, cast iron and ductile pipelines. The dual colour method allows for clear visual verification during application. Designed exclusively for the Picote Brush Coating™ System

  • NSF 61.5 Certified (white)
  • ASTM certified
  • WRC Approved
Specification Images & videos Downloads Where to use Accessories
Uses and benefits

This product has been created to renovate drains, sewers, water pipes, electrical conduits, heat and a/c ducts and more by brush casting a coating. The specially formulated coating resin forms a semi-structural enhancing corrosion resistant barrier inside the original pipe that is a tested, safe and environmentally friendly product. The new pipe is damp-proof, corrosion resistant, wear-resistant and non-corrosive. Thanks to a high breaking stretch, it
also withstands shocks and bending. The new pipe becomes elastic and antistatic.

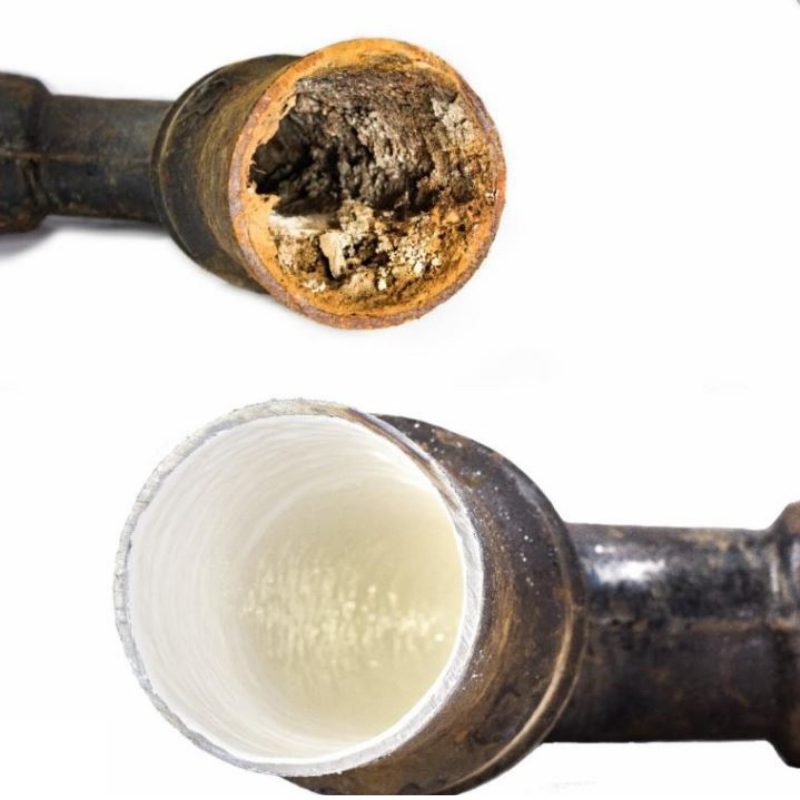

1. Extend the life span of the original pipe: The resin can be used to prolong the life of an existing pipe. Clean the pipe well. Apply single (0.5-1mm/coat) or dual coats of the resin. The new slick inner surface will increase the flow inside the pipe minimizing the risk of blockages.
2. Create a new semi structural pipe: Apply several coats of the resin forming a seamless new pipe with a 2-4mm wall thickness depending on the diameter of the drain. Estimated 30-50 year design life when using Semi Structural Design Specifications based on pipe diameter.


Technical spec
Working Range 1 1/4’’ t0 12’’ (DN32-DN300)
Recoat Recoat: 3hrs @ 70ºF/21ºC
Restore Flow 4 hrs
Final Cure 24 hrs
Recoat after 12 hrs Abraid first with Smart Cutter™
Potable Water 4" (DN100) and above (final coat must be white)
Min. Rate of coverage 10 mils (0.3 mm)
Max. Rate of coverage 20-40 mils (0.5-1 mm)



US Catalog
Download file
Metric Catalogue
Download file
German Catalogue
Download file
Smart Mixer 2.0
Battery powered (Li-ion battery) cartridge mixer. Comes in carry case with spare battery, charger & 600ml piston
Brush Stopper
Brush Stoppers available for use with Maxi Pump and Mini Pump
