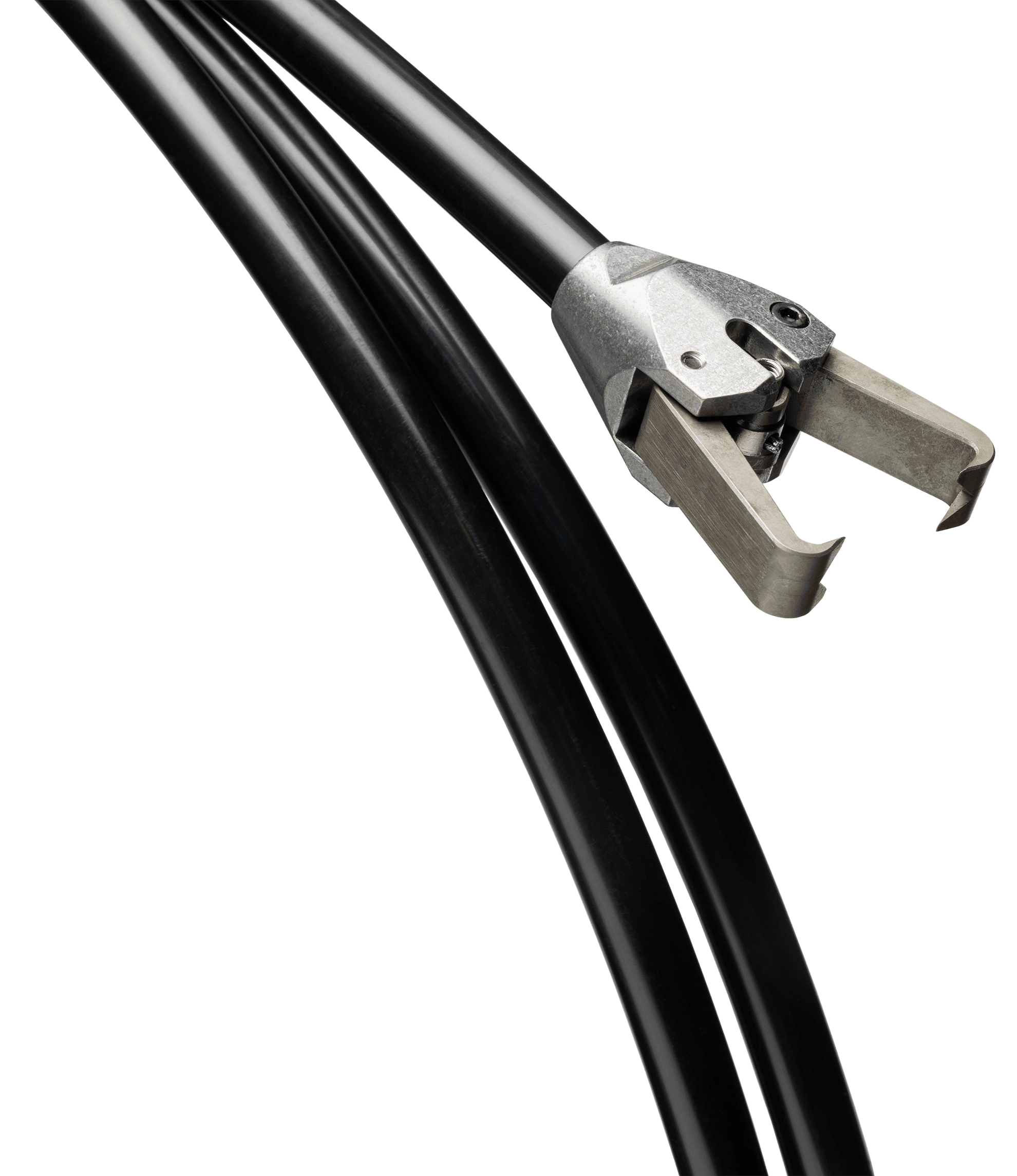

    Small Grabber

    Quickly retrieve lost tools, or foreign objects blocking DN50-75 (2-3”) pipes, avoiding the time and cost of digging and demolition.

    Four customized Grabber Heads are included. The Grabber Heads can be quickly changed according to the job at hand.

    The Small Grabber is easy to operate and is built with simple mechanics. Use a CCTV camera to locate desired location and push it into position. To rotate simply turn the Tool Turning Knob either direction. The Tightening Knob is rotated clockwise to close the Jaw and Lasso Grabber Heads.

    Contact us
    Specification Images & videos Downloads Where to use Accessories
    Uses and benefits
    • Retrieve anything from pipes DN50-75! (2-3")
    • Two lengths: 5 & 10m (16 & 32ft)
    • No need for an air compressor.
    • Navigates 90° bends.

    4 Grabber Heads included:

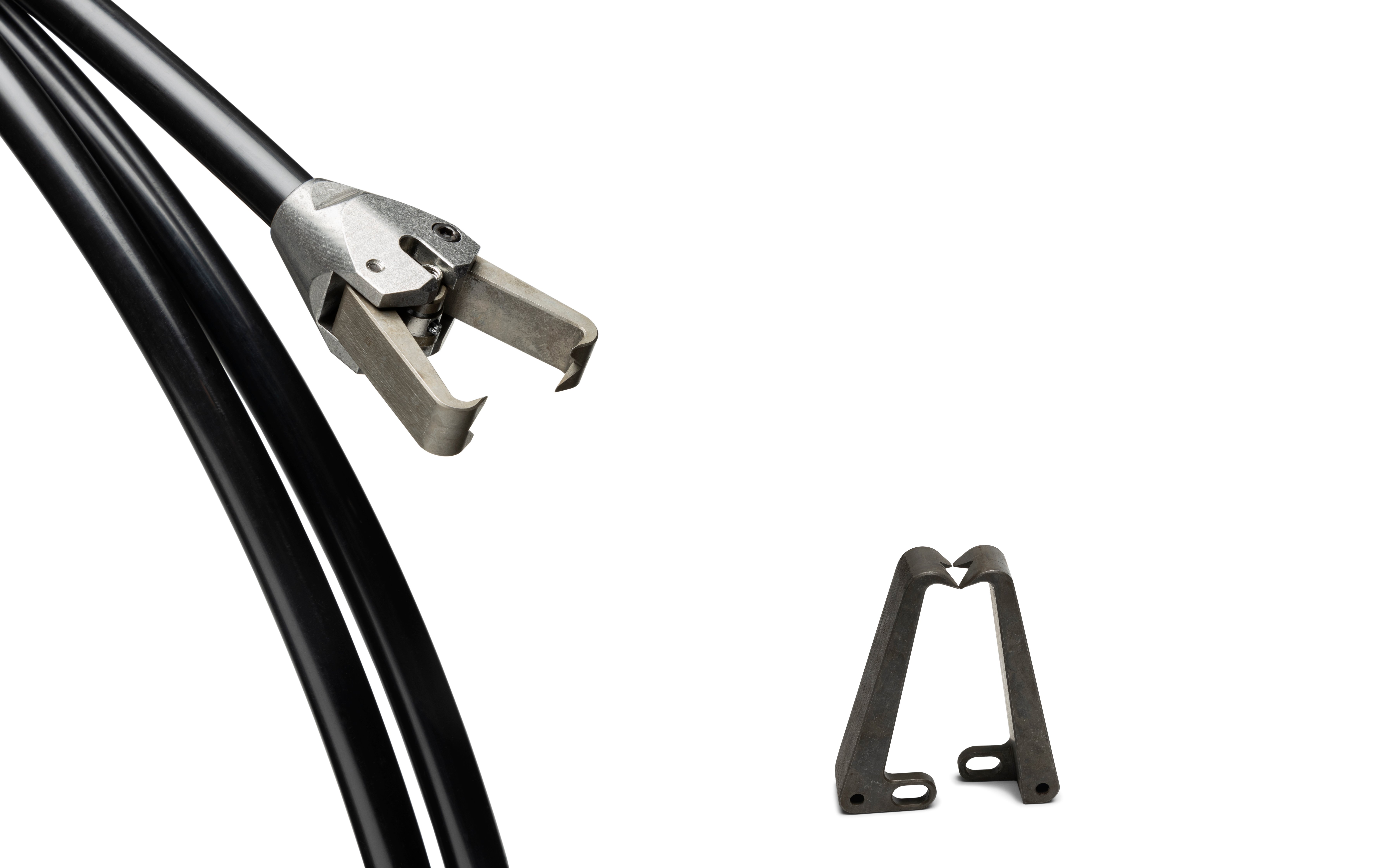

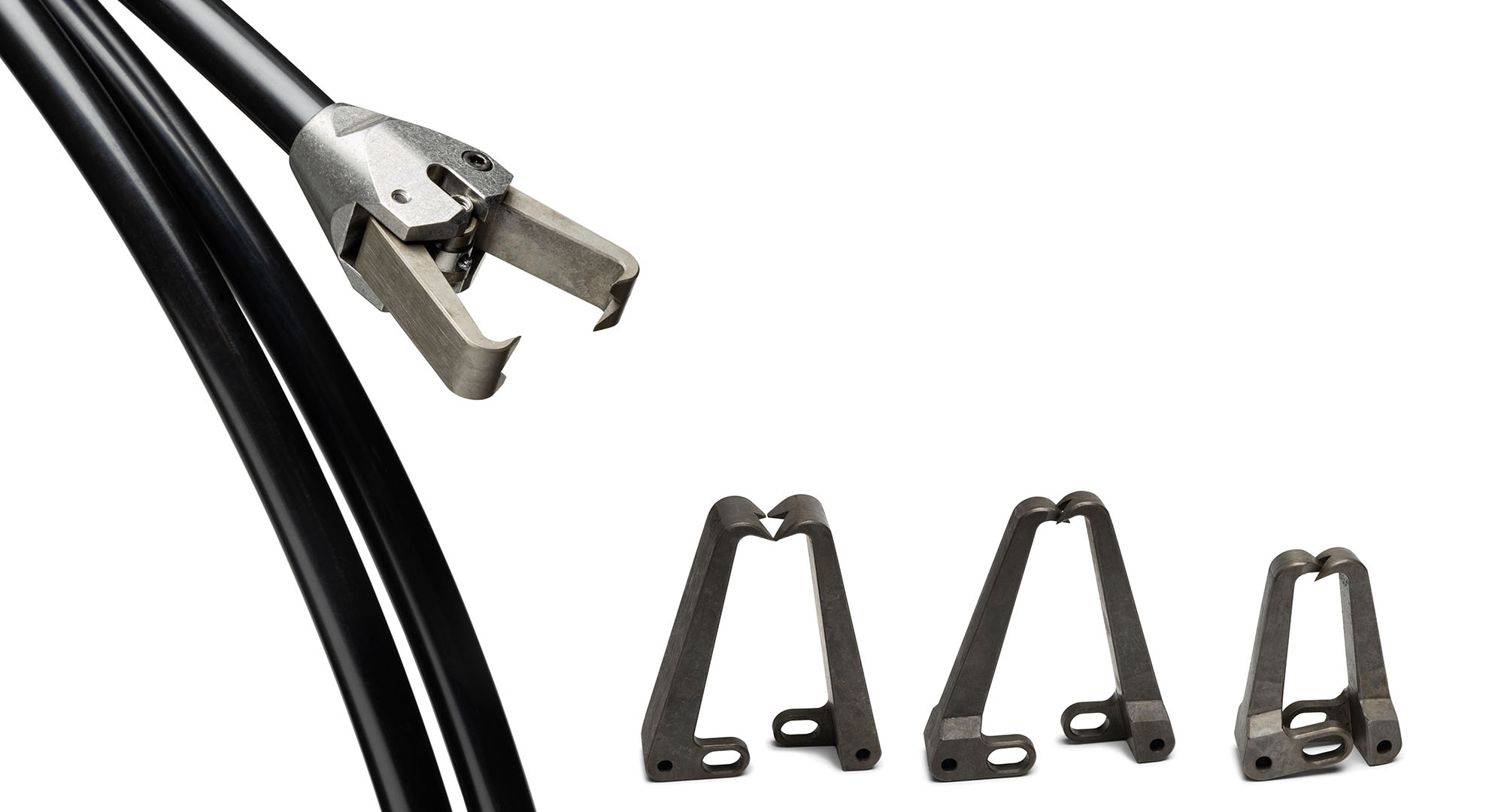

    • Jaw Grabber: Claw-like motion and overlapping jaw design ensures accuracy.

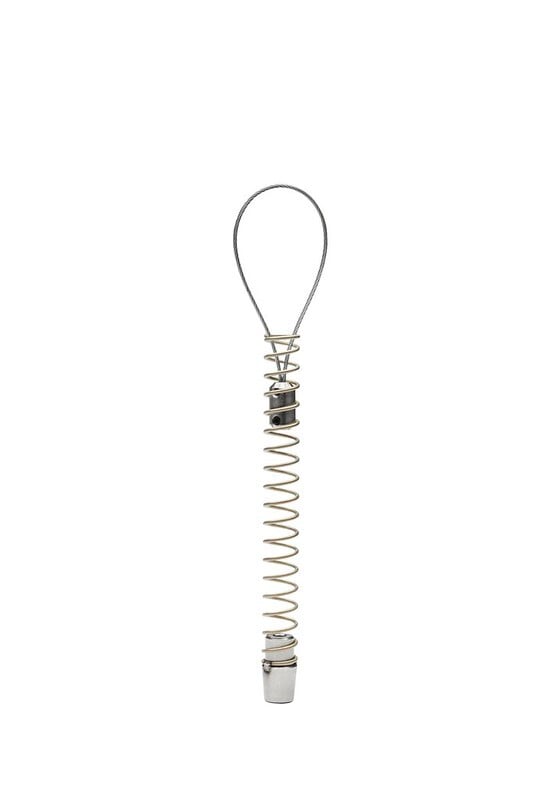

    • Lasso Grabber: Unique spring design ensures constant grabbing force to lasso items.

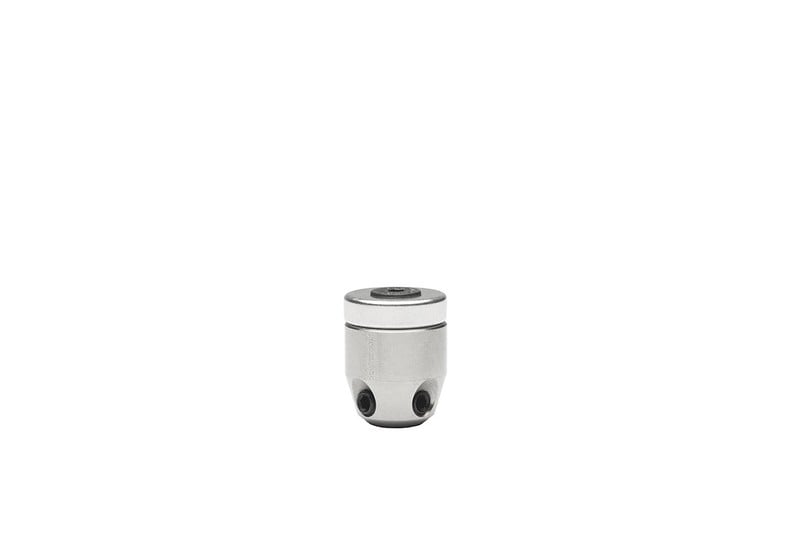

    • Magnet Grabber: strong magnet retrieves metal items that are otherwise hard to grab.

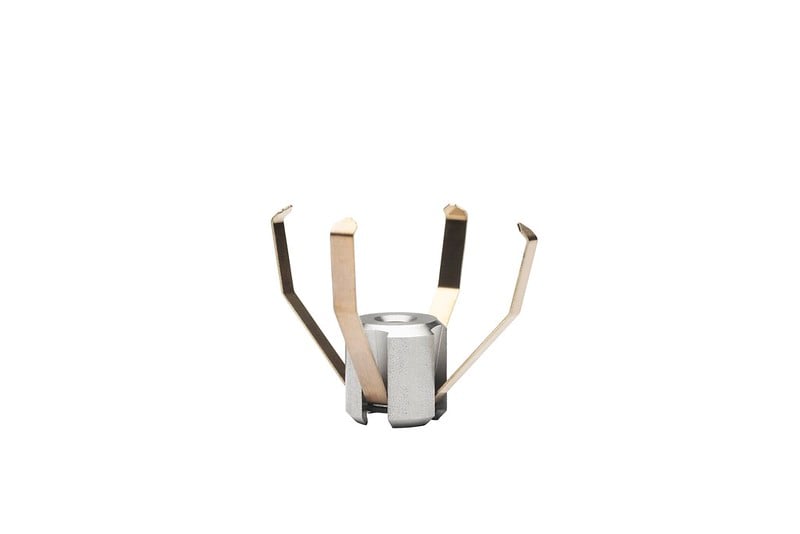

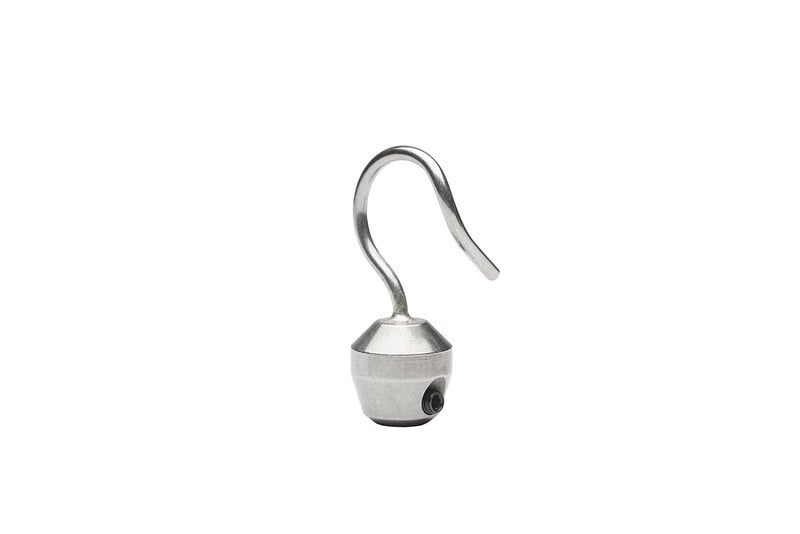

    • Hook Grabber: Rotational scooping motion captures items & provides secure handling my locking into position before retrieving.

    3 Packages Available:

    • Small Grabber 5m (16ft) /PN: 2370000041

    • Small Grabber 10m (32ft) / PN: 2370000042

    • Small Grabber 5 & 10m (16ft & 32ft) with shared Grabber Heads / PN: 2370000040

    Technical spec

    Grabber Heads

    		 Jaw Grabber Head

    Lasso Grabber Head

    Magnet Grabber Head

    Hook Grabber Head

    Pipe Diameters

    DN50-75 (2-3")

    Lengths

    4.8m (16 ft)

    10m (32 ft)

    Extensions

    None available
    54093725934_c42f096295_c 54093645843_90fce048c4_c 54092526012_e0ec6f2a00_c 54093852145_6d8bc60b59_c 54092526047_06c0218ae3_c

    Downloads

    US Catalog
    Download file

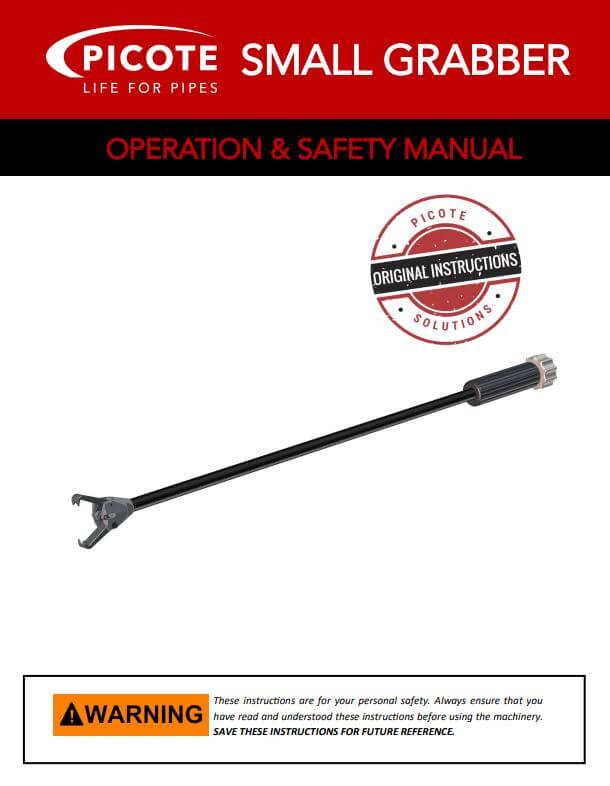

    Manual
    Download file
    Metric Catalogue
    Download file
    German Catalogue
    Download file

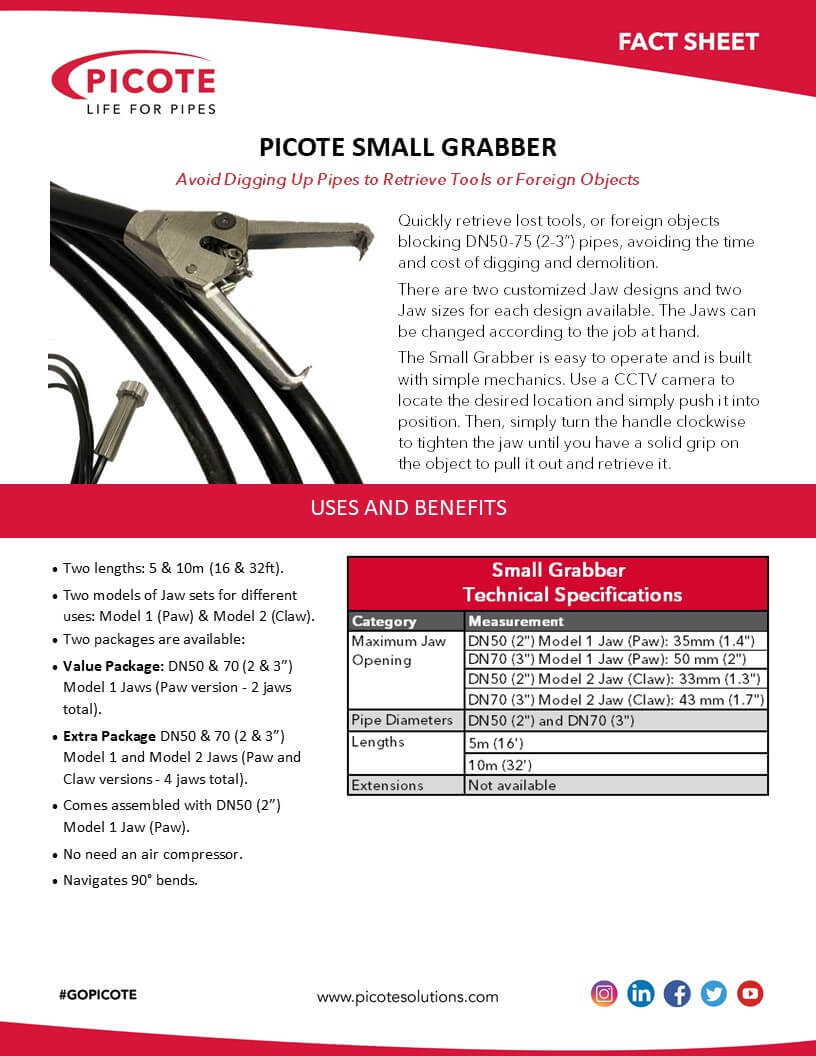

    Fact sheet
