Midi Roller and Station

Midi Roller & Wet-Out Station

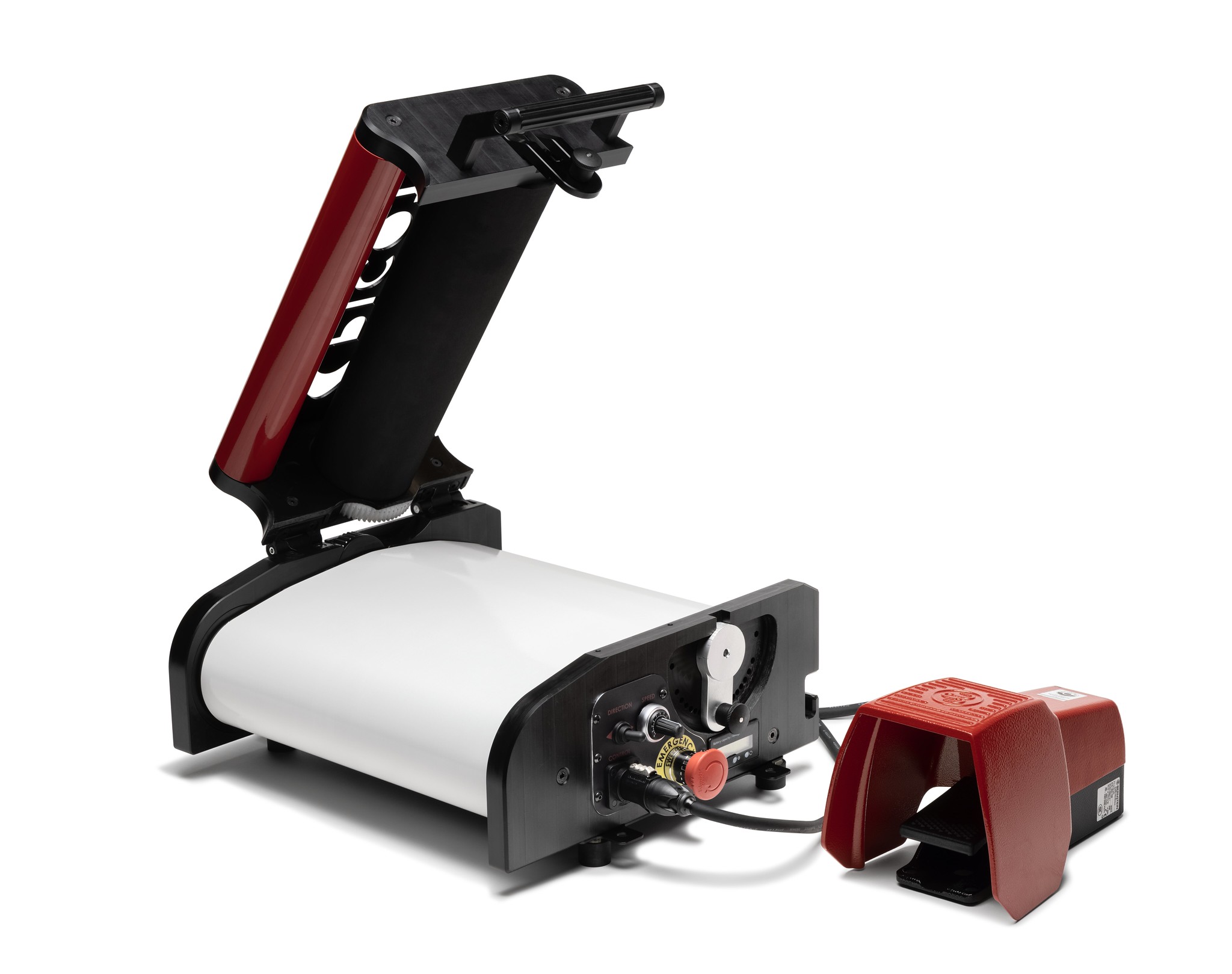

The hybrid Battery Powered Midi Roller is designed for wetting out CIPP liners from DN50-DN225 (2-9”). This lightweight and compact unit can be powered by the integrated battery or plugged in and charged during use.

The Midi Roller can be mounted on a separate work surface or combined with the Picote Wet-Out Station (sold separately) which doesn’t require an additional power source because it’s powered by the Midi Roller!

Specification Images & videos Downloads Where to use Accessories
Uses and benefits

The Battery Midi Roller is a portable and convenient option for wetting out liners. Packed with many great features:

  • Hybrid unit: The built-in high performance battery with approx. 10 hours of working time allows you to work anywhere without access to electricity or plug into a 220V or 110V electric source and charge while in use.
  • Variable speed and bi-directional controls.
  • The belt features a silicone surface and rubberized upper wheel, making the process easier.
  • Lightweight, compact & easy to transport (18kg/40lbs).
  • Upper roller lifts up making wet-out faster and easier.
  • Optional Liner Holders serve as an extra set of hands to help pour resin into the liner.

 Wet-Out Station

  • An innovative and practical addition to the Midi Roller.
  • No additional power source needed - powered by the battery-powered Midi Roller belt.
  • Built-in wheels and transport handle. Quickly & easily set up your Wet-Out Station at the job site.
  • Lightweight, compact, & easy to transport (36kg/79.4lbs)
  • Easy to set up - simply add the Midi Roller to create a complete powered Wet-Out Station with a combined belt length of 1.5m (59”).



Technical spec
Pipe Diameters DN50-225 (2-9")
Gapping 4-14mm (0.5mm increments)
Power UK/US: 110V, 15 Amp / or Battery
  EU: 220V, 16 Amp / or Battery
Speed 3-9m (9-29.5ft) /min
Weight Midi Roller 18kg (40lbs), Wet-Out Station 36kg (79.4lbs)
Size (WxLxH)/ Midi Roller 360 x 486 x 265mm
14.2 x 19.1 x 10.4”
Size (WxLxH)/ Wet-Out Station 1550 x 632 x 970mm
61 x 24.9 x 38.2”
How to use

Use in the field, for in-house or underground lining projects. This flexible and compact system can be used and stored in your van, workshop or taken right to the jobsite thanks to the foldable legs and sturdy wheels.  The thoughtful design enables easy transportation and a small storage footprint.

Downloads

US Catalog
Download file
Fact sheet
Download file
Metric Catalogue
Download file
German Catalogue
Download file
Liner Holders for Midi Roller
Liner Holder specifically designed to fit the Midi Roller
