Smart Heat
Picote Smart Heat Millers make the ambient CIPP curing process up to 35% faster, to help ensure completion according to the resin curing schedule.
- Mini Smart Heat Miller
- Maxi Smart Heat Miller
- Smart Heat Cables
Uses and benefits
- The Mini Smart Heat is built on a customized Picote Mini Miller frame. It is small and compact making it excellent for use inside buildings. It has 15m (50’) of heat cable.
- The Maxi Smart Heat is built on a customized Maxi Miller frame with 30m (98’) of heat cable. It is ideal for jobs with hidden pipes or pipes outside of buildings.
- The separate Smart Heat Cables can be used for curing assistance on shorter projects of 5, 8, & 10m (16, 25, & 32’). These are manufactured to be used with the Maxi Smart Heat Curing Caps.
Technical spec
| Temperature | 60-70°C (140-158°F) when curing inside the lining |
| Safety Features | Emergency stop, internal GFI |
| Mini Smart Heat Miller | |
| Range | 15m (50') |
| Power | UK/US: 110/125V, 15 Amp |
| EU: 220/230V, 16 Amp | |
| Output (W) | 1050W |
| Weight | 22kg (49 lbs) |
| Size | 752 x 519 x 389mm |
| 29 x 20 x 16" | |
| Maxi Smart Heat Miller | |
| Range | 30m (98') |
| Power | UK/US: 110/125V, 30 Amp |
| EU: 220/230V, 16 Amp | |
| Output (W) | 2100W |
| Weight | 53kg (117 lbs) |
| Size | 1150 x 854 x 489mm |
| 45 x 34 x 19" | |
| Smart Heat Cables | |
| Range | 5, 8, & 10m (16, 25, & 32') |
| 5m (16') Output (W) | 320W |
| 10m (32') Output (W) | 640W |
| Power Cord Length | 2m (6½') |
| Cable Diameter | 21mm (¹³⁄₁₆") |
How to use
With worksite proven technology, this easy to use and ecologically friendly option doesn’t use water, so there is no risk of water damage inside buildings.
Especially helpful for situations where low temperatures might make ambient curing challenging - such as hidden pipes, air vents, or pipes located in attics.
Downloads

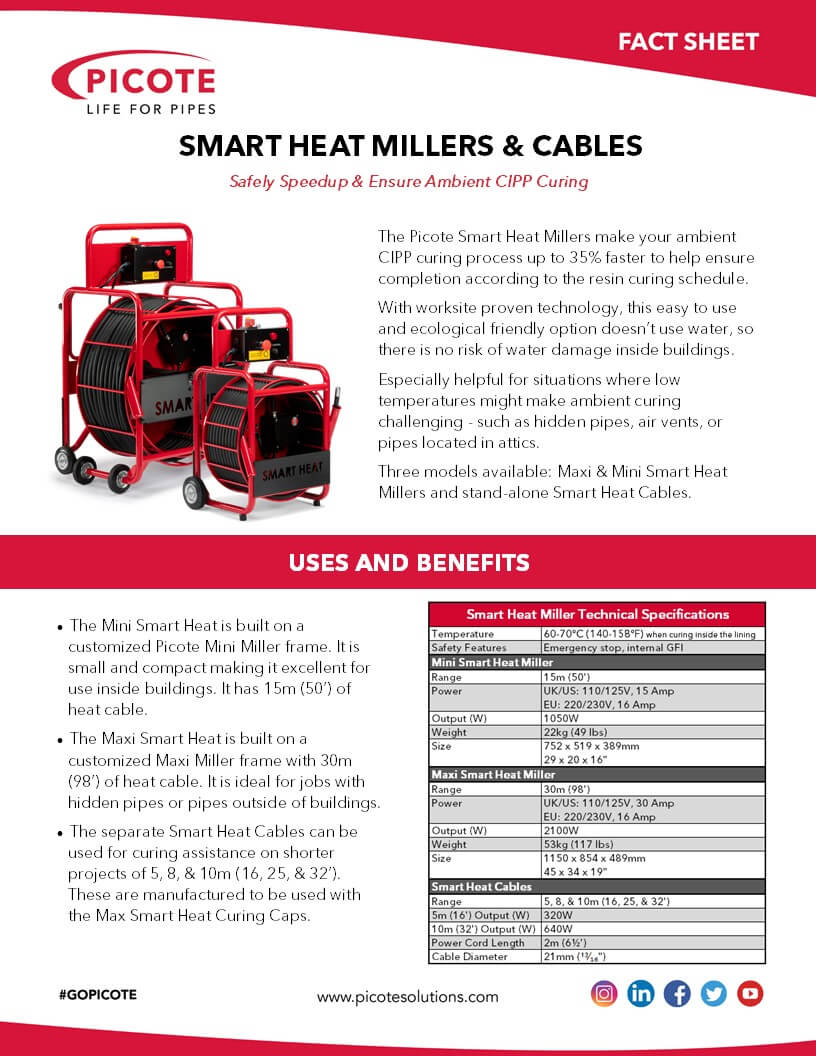

Fact sheet
