Grabber for Push Rods

The Picote Grabbers allow you to quickly retrieve lost tools, or foreign objects blocking a pipe, and avoid the time and costs of digging and demolition.

While directing the location with your CCTV camera, simply push the grabber into position. The tool head is easily rotated which makes it easy to locate and grip the item with precision.

Then, simply turn on the air valve to get a rock solid grip on the object to pull it out and retrieve it. Turn off the air to release.

This Push Rods version fits snugly onto Picote Push Rods while taking up very little space in your vehicle!



Specification Images & videos Downloads Where to use Accessories
Uses and benefits

  • The Picote Grabber for Push Rods comes in two sizes: Original (with two jaw sets) and Large (with one set)
  • Increase the reach of the Picote Grabber by adding more Picote Push Rods!
  • Navigates 90° bends.
  • CCTV camera and air compressor required.
Technical spec
Category Measurement
Max. Jaw            Opening

Original: 80mm (3.2")

Large: 130mm (5.1")

Max. Item Lifting Weight

Original: 35kg (80lbs)

Large: 70kg (150lbs)

Pipe Diameters

Original: DN100 (4") or larger

Large: DN150 (6") or larger

Push Rods

Push Rod 22mm (.87"), length 0.75m (2.5')

Push Rod 22mm (.87"), length 1.5m (5')

Push Rod 24mm (.94"), length 1.5m (5')

Min. Air requirement

8 Bar (116 PSI)
Max. Air requirement 10 Bar (145 PSI)







Downloads

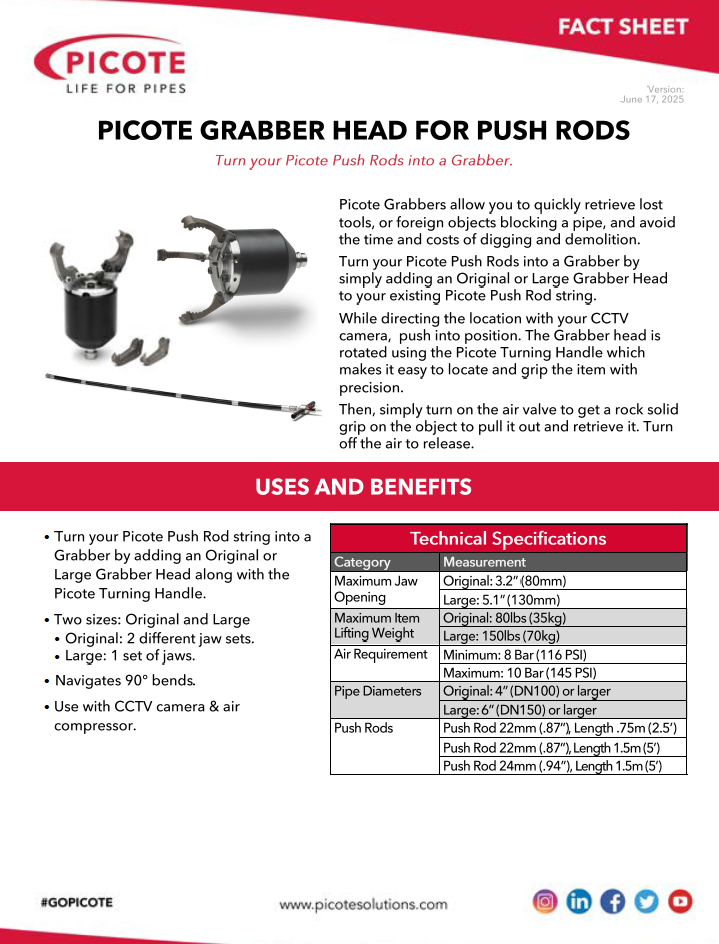

Fact sheet
Download file
